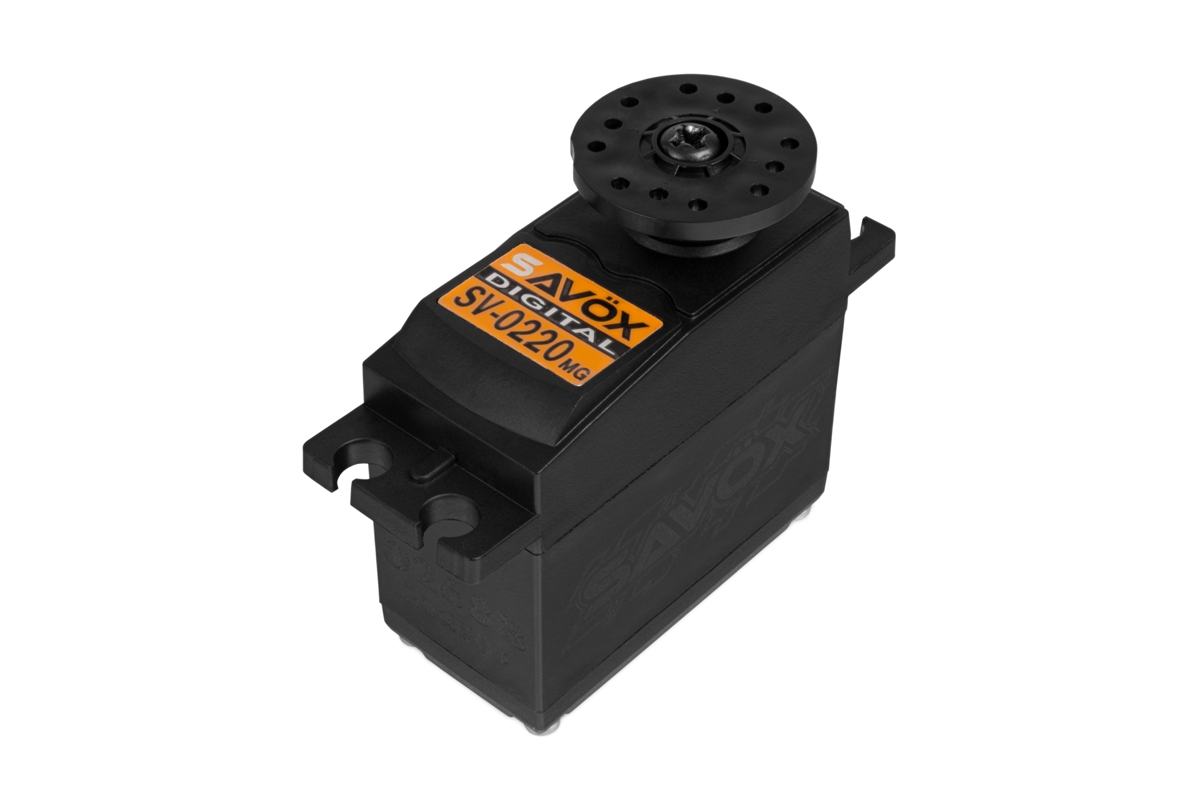

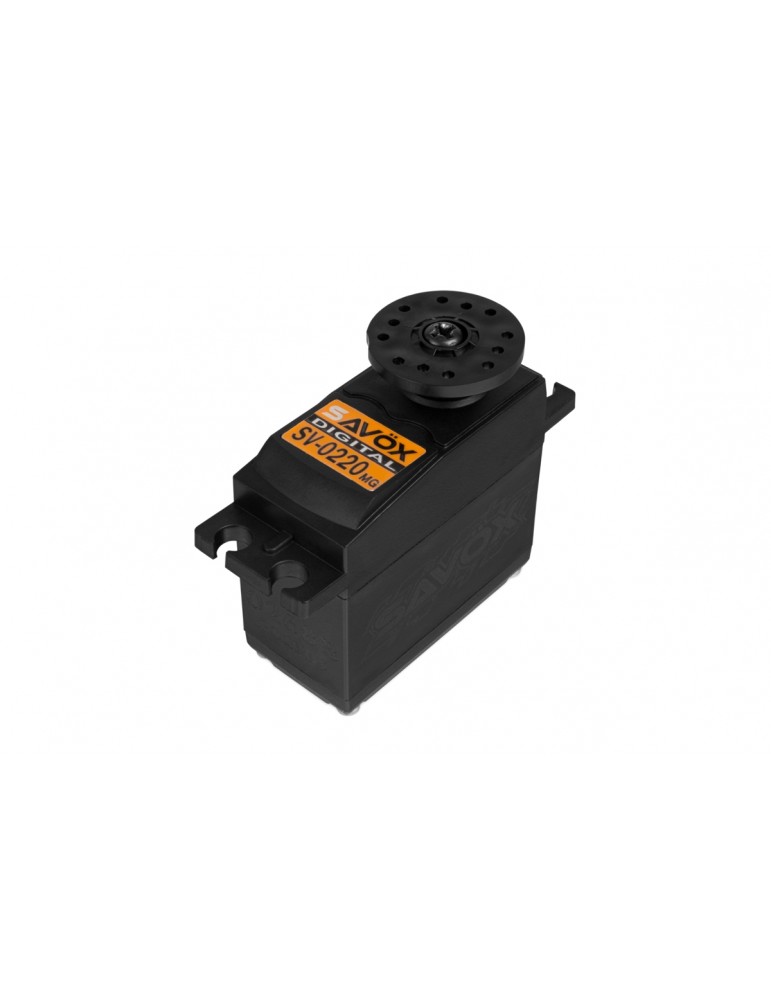

SV-0220MG+ HiVolt Digital servo (8,0kg-0,13s/60 )

The Savox SV-0220MG is a budget-friendly, metal-geared, digital standard servo capable of operating on high voltage.

Features:

• NEW: SOFT START
• Metal gear train ensures durability and longevity.
• Capable of high voltage use

• Torque @ 6v - 6.5kg
• Torque @ 7.4v - 8.0kg
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg

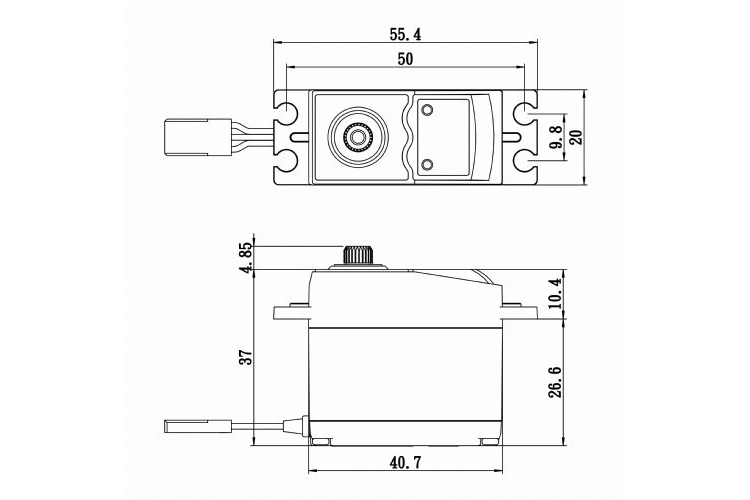

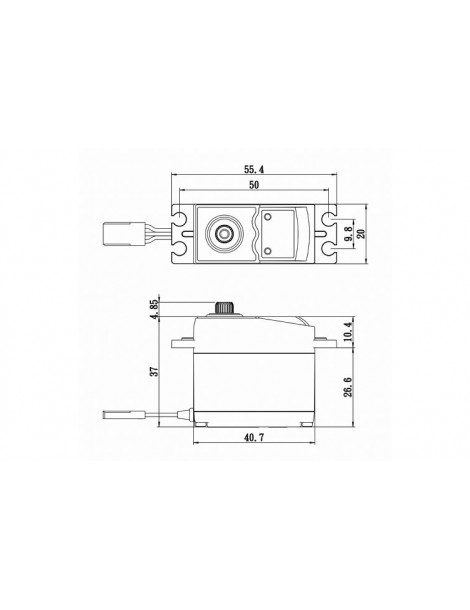

• Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0
• Weight: 59.0g

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 100mA @6.0V, 120mA @7.4V
• Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 1BB
• Operating Travel: 120° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 164° (800 → 2200 µ second)
• Refresh Rate: 240 HzMotor Type: Brushed
