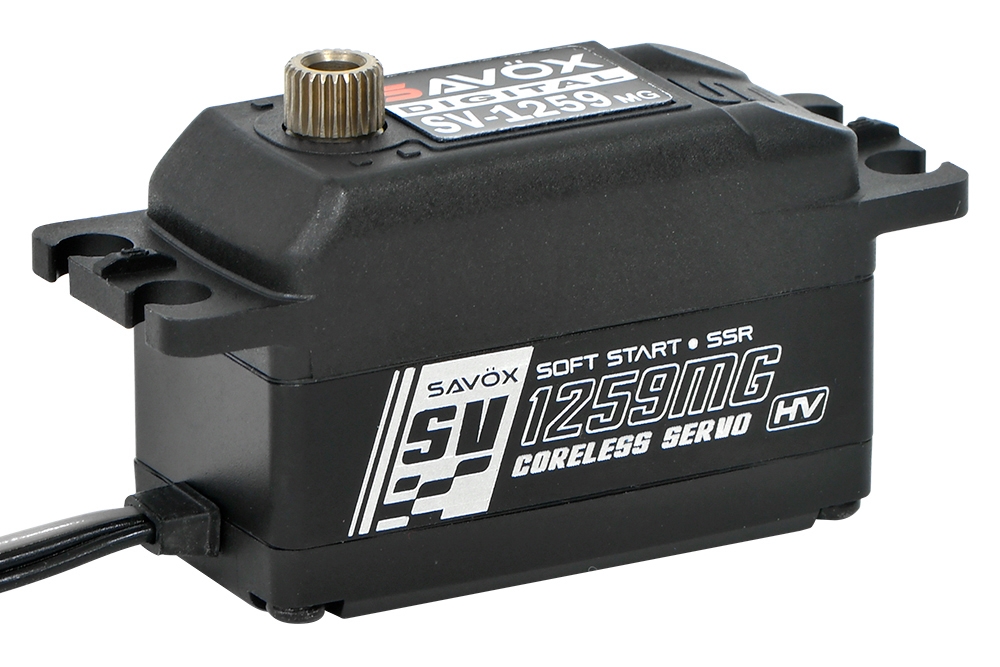

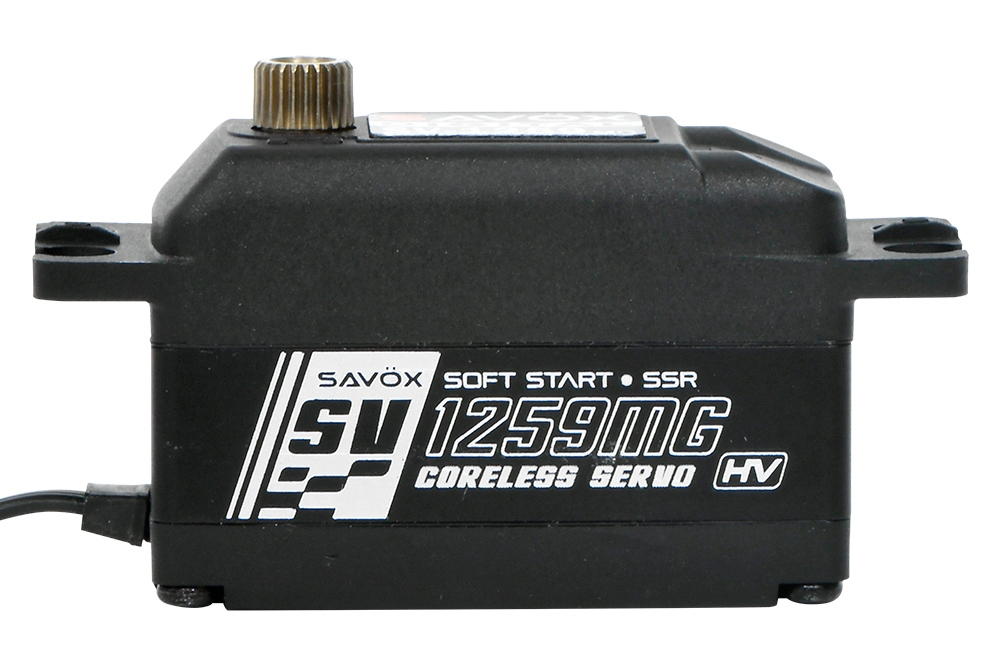

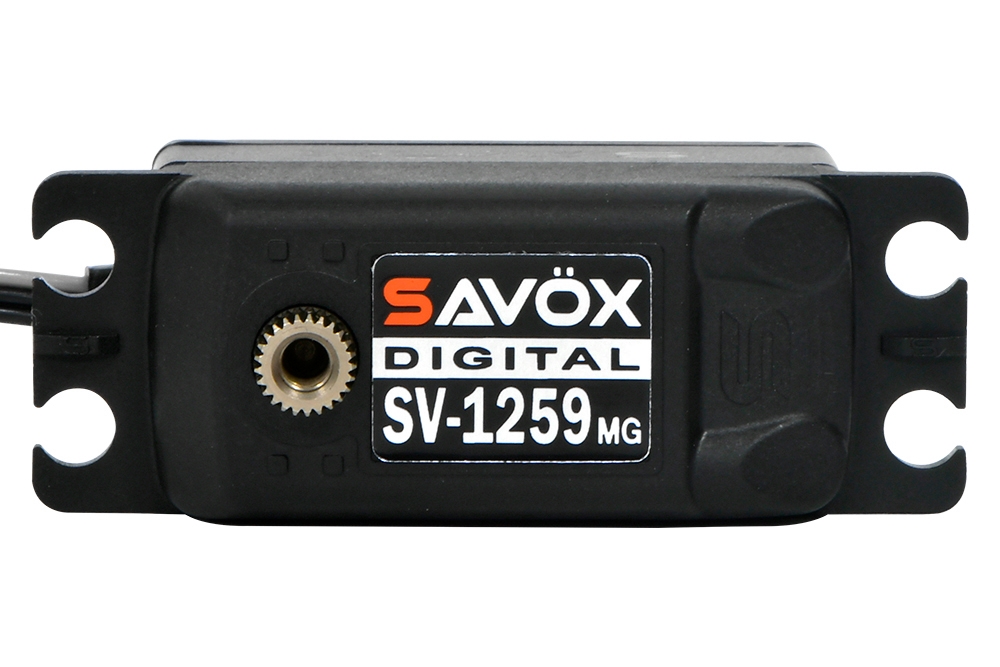

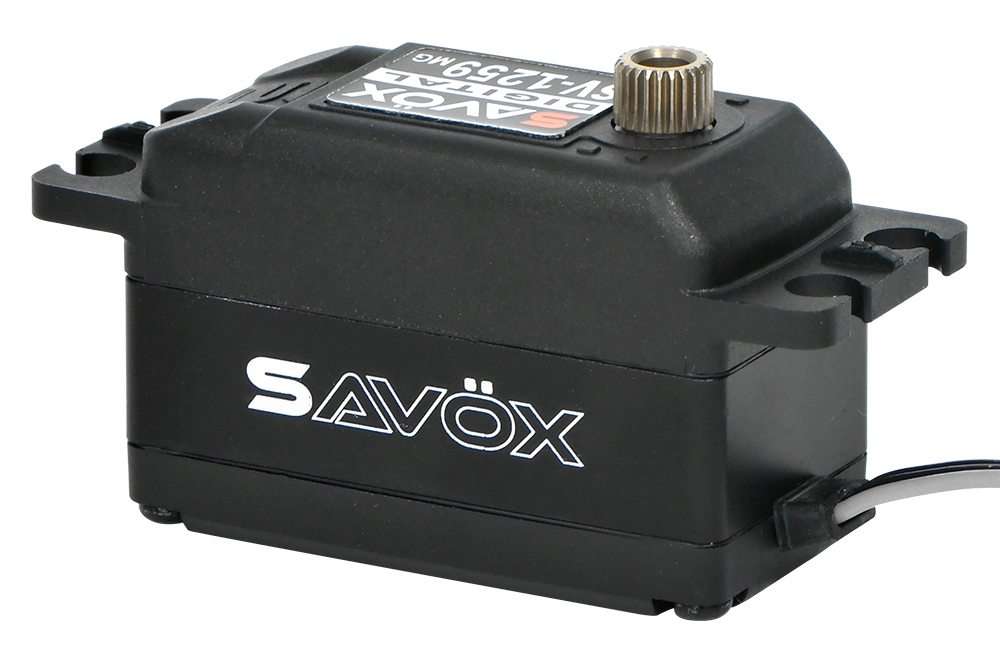

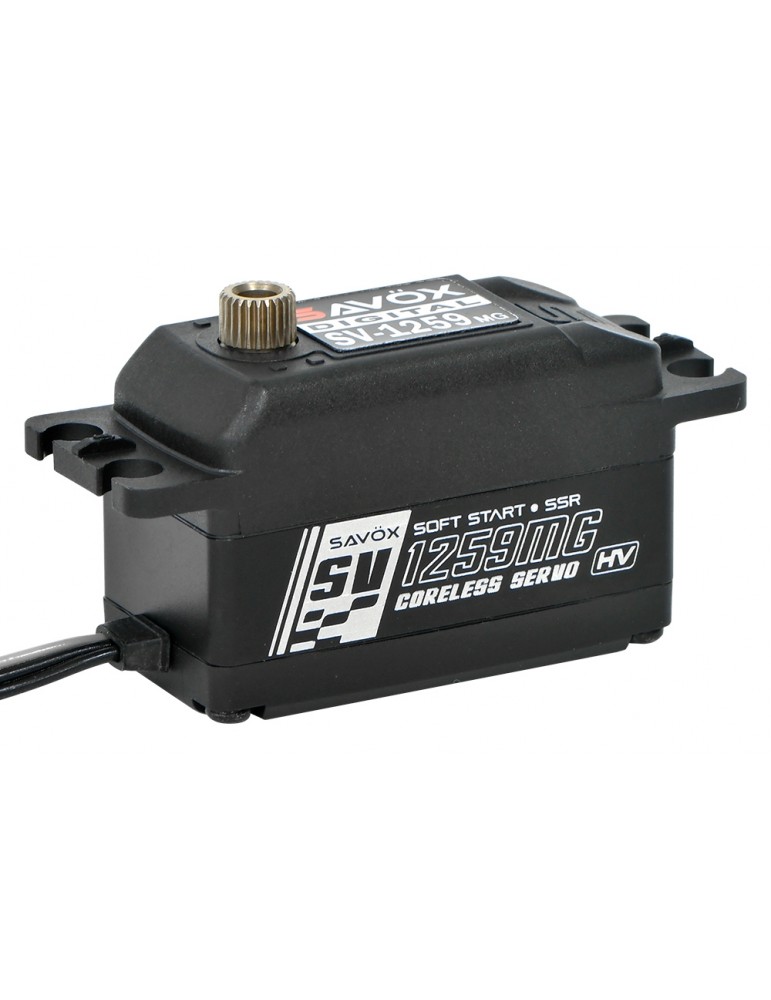

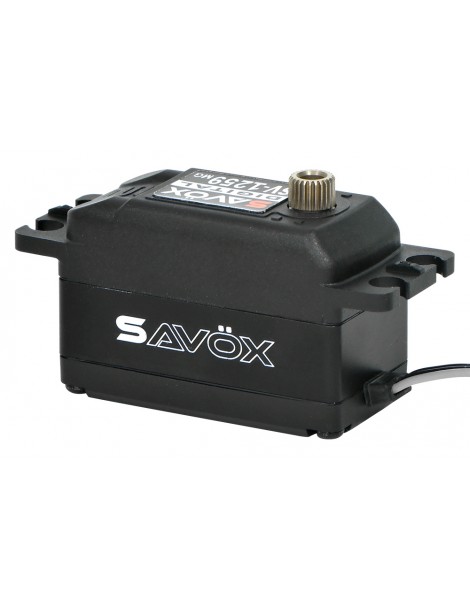

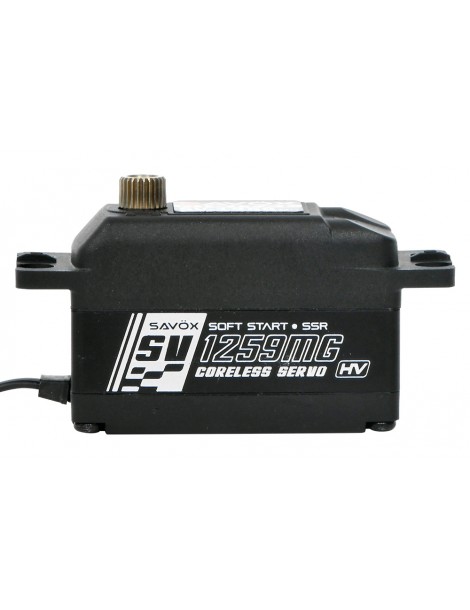

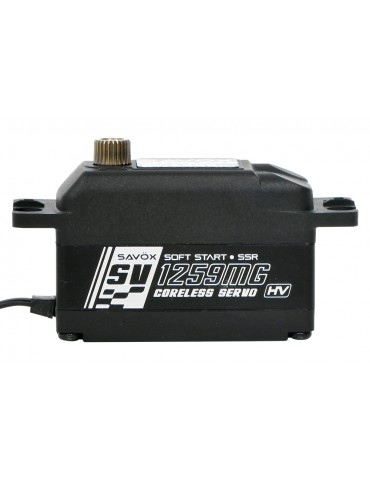

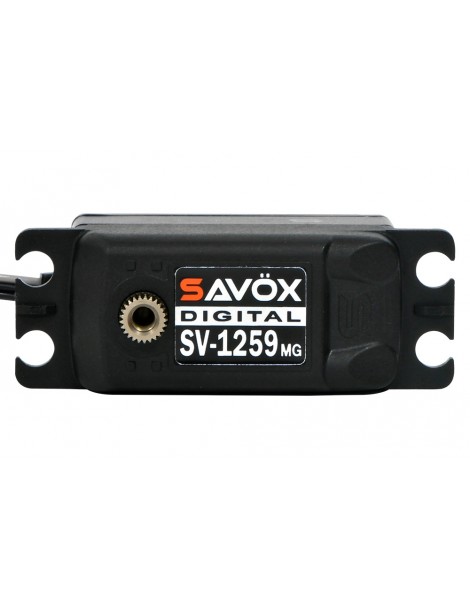

Savöx SV-1259MG is a performance-oriented low-profile servo for 1/10 racing or tight builds.
This Black Edition servo is purpose-built for the 1/10 racing scene, offering high-speed, precise response to steering inputs, ultra-quiet software tuning for a smoother, quieter feel and hybrid case and gear design for strength, durability, and balanced weight.
The SV-1259MG fits perfectly in 1/10 touring and buggy setups, and can even be used in 1/8 electric steering or 1/8 on-road throttle applications, giving you flexible performance options.
If you want sharper, quieter, and more consistent control in a micro package, this is a great candidate to consider.
Specifications:
- Line: BLACK EDITION
- Application: CAR
- Servo Size: Low Profile
- Operating Voltage: 6.0V-8.4V
- Speed @6.0V: 0.1 s/60°
- Torque @6.0V: 15 kg/cm
- Speed @7.4V: 0.085 s/60°
- Torque @7.4V: 19 kg/cm
- Speed @8.4V: 0.075 s/60°
- Torque @8.4V: 22 kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Hybrid (Aluminum/Composite)
- Protection: Water Resistant

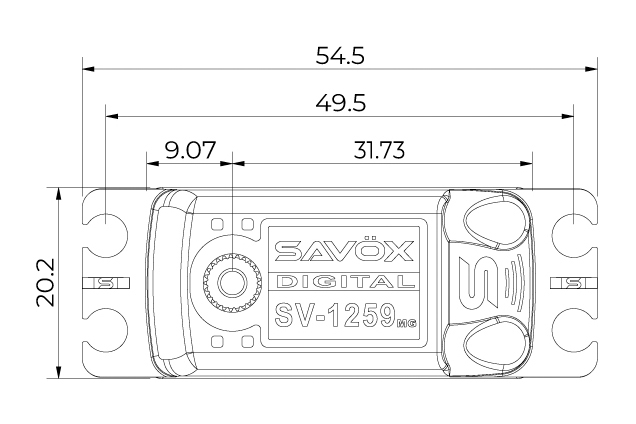

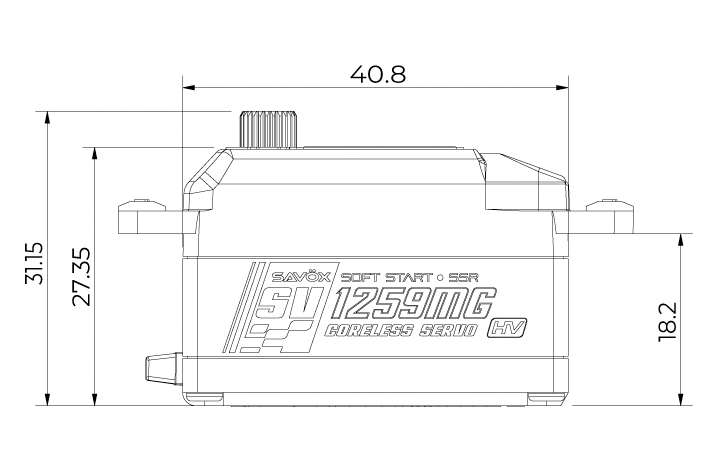

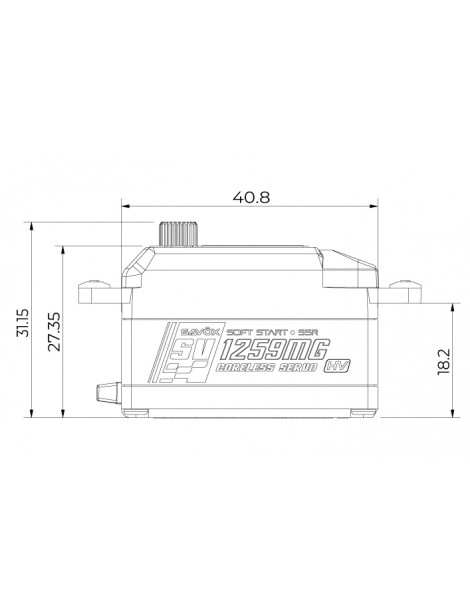

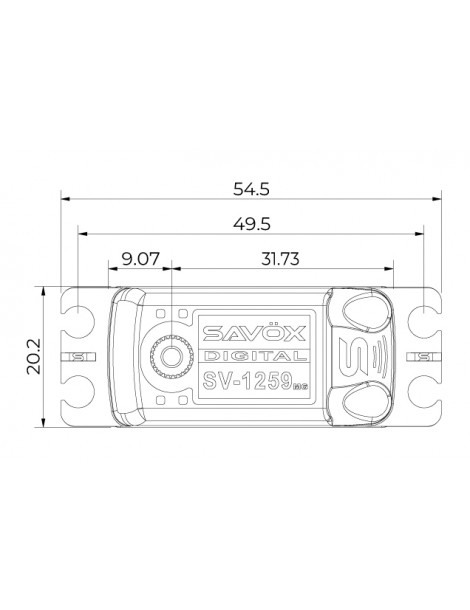

- Dimensions (L x W x H): 40.8 x 20.2 x 27.35 mm
- Weight: 49 g

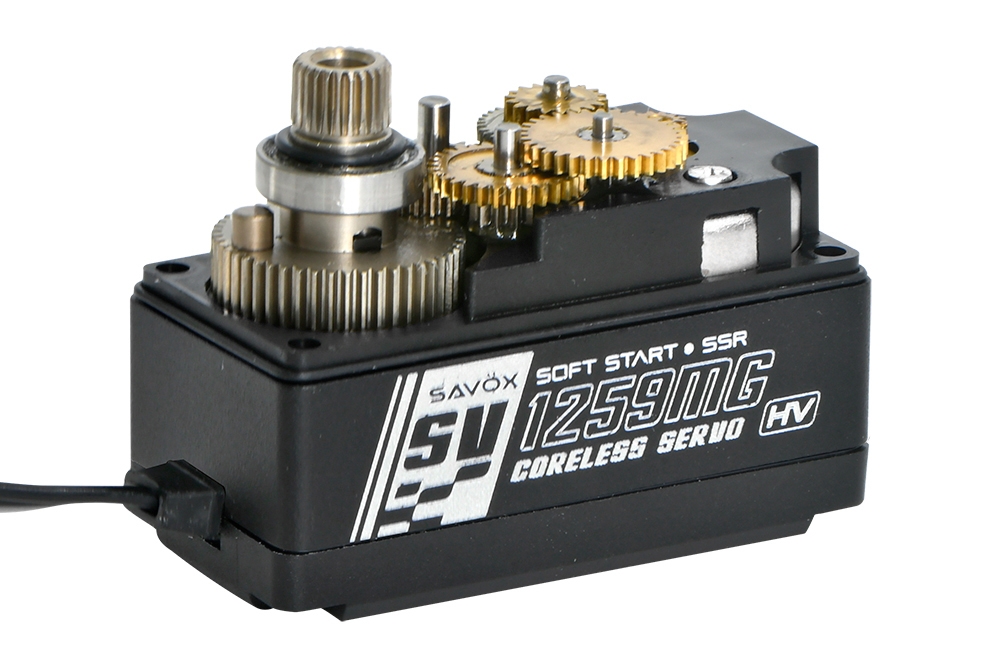

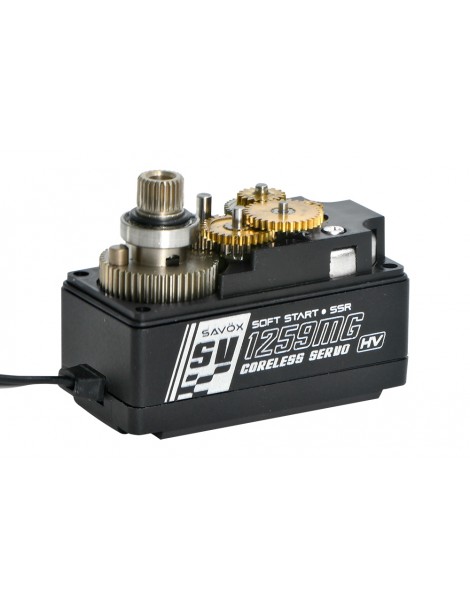

- Gear Type: Hybrid (Metal/Composite)
- Compatibility: Sanwa SUR, SSR, Futaba UR, SR
- PCB Board: 12-bit
- Horn Gear Spline: 25T(Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000 μsec)
- Max Travel: ~140° (when 800→2200 μsec)
- Operating Travel: 100° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 26 AWG
- Cable Length: 250 ±5 mm
- Connector: JR Connector
- Stall Current @6.0V: 3500 mA
- Operating Current @6.0V: 180 mA
- Stall Current @7.4V: 4200 mA
- Operating Current @7.4V: 200 mA
- Stall Current @8.4V: 4800 mA
- Operating Current @8.4V: 220 mA
- Idle Current: 6 mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360 Hz
- Control System: Pulse width modification
- Operating Temperature: -10°C to 50°C
