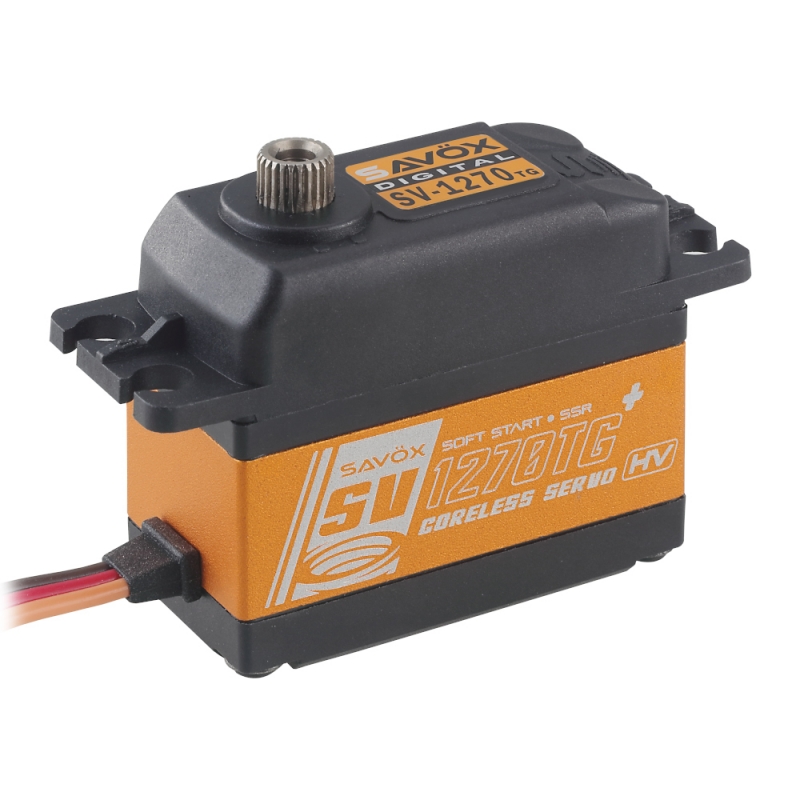

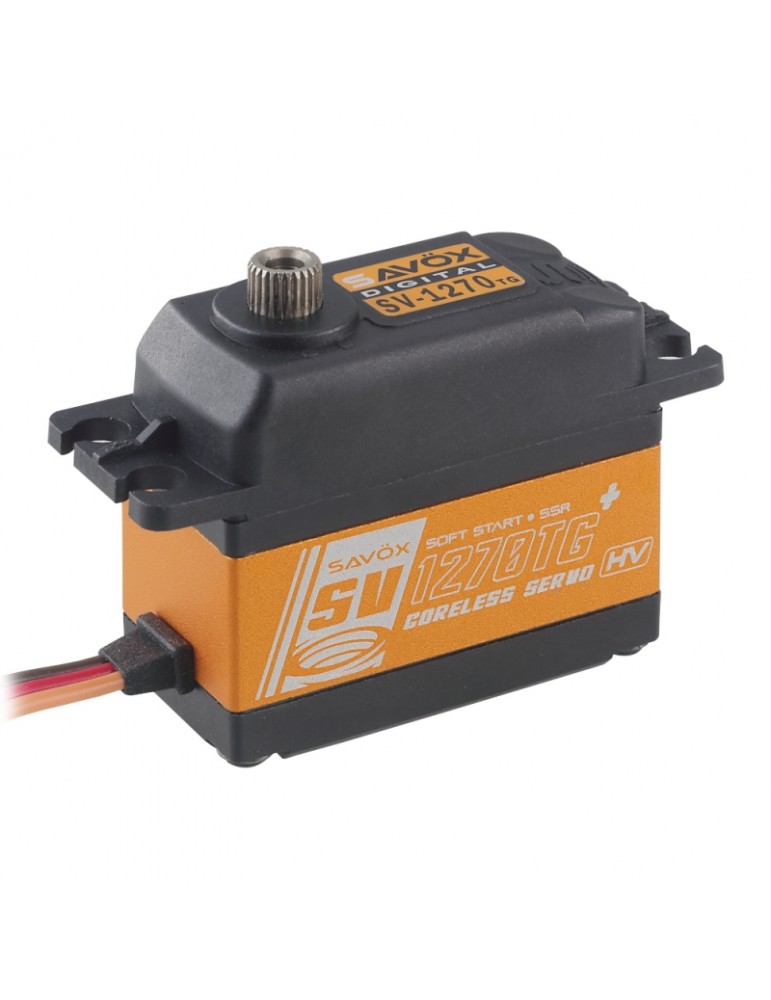

SV-1270TG+ HiVOLT digital servo (45kg-0,10s/60 )

This is the Savox SV-1270TG+ Digital High Voltage "Monster Torque" Titanium Gear Servo. Built to handle extreme requirements, this servo delivers.

Features:

• Super strong, precision made titanium gears provide durability that will survive heavy use.
• Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
• Capable of HV operation.
• The servo that racers desire.
• NEW: SSR mode compatible
• NEW: SOFT START

• Torque @7.4v - 40.0kg
• Torque @8.4v - 45.0kg
• Speed @7.4v - 0.11 sec/60 deg
• Speed @8.4v - 0.18 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Weight: 64.0g

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
