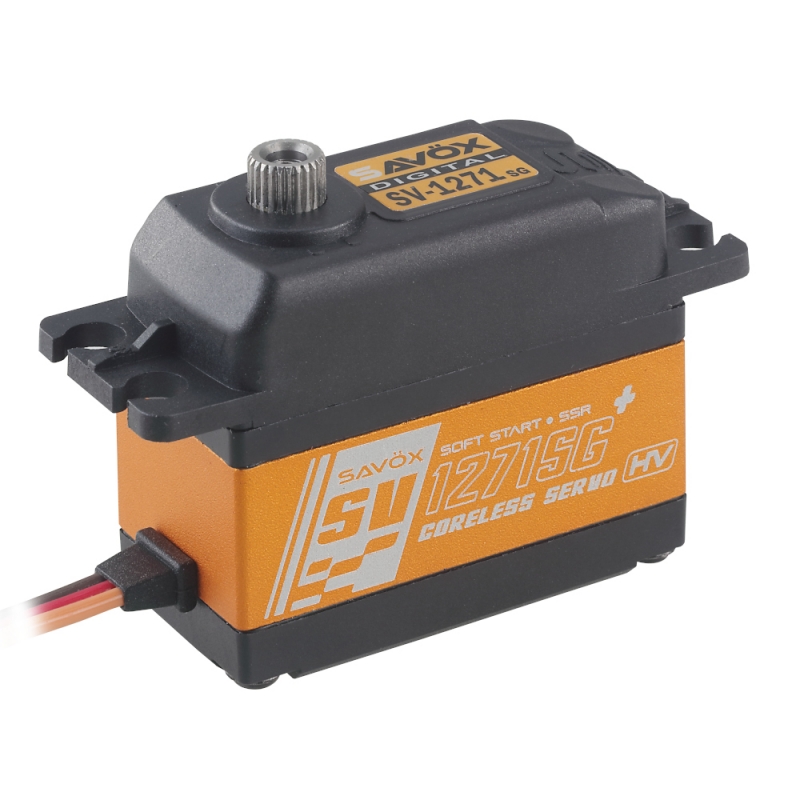

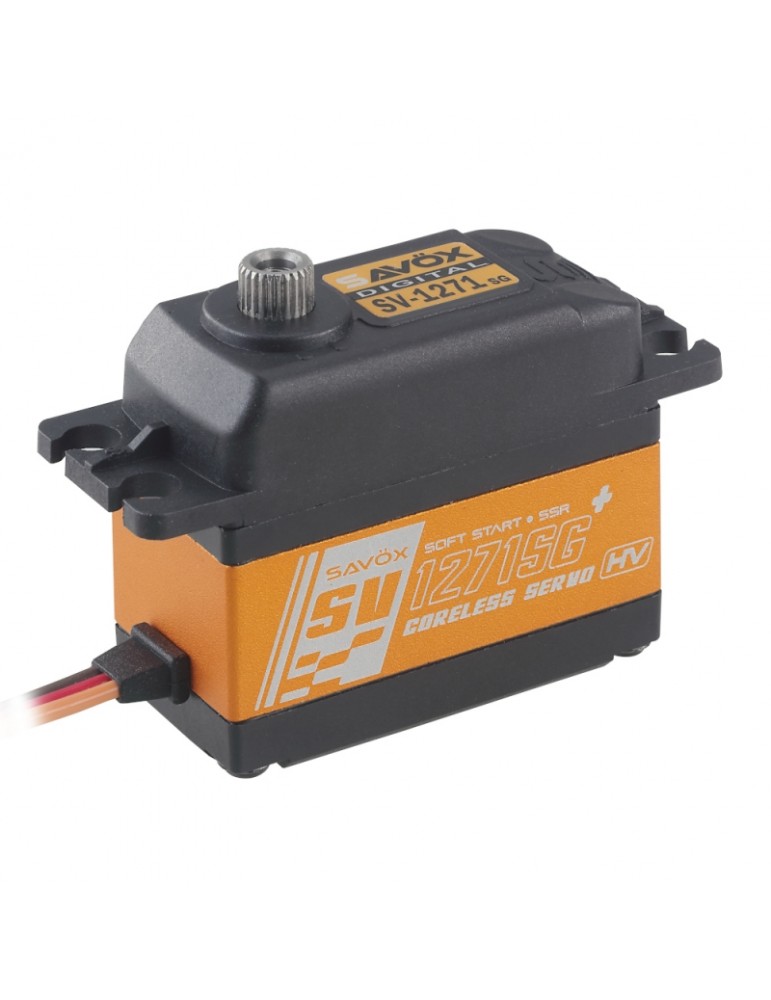

SV-1271SG+ HiVOLT digital servo (35kg-0,07s/60 )
Atsiliepimai
Pateikti atsiliepimą
The Savox SV-1271SG+ High Torque, High Voltage Digital Servo is one of the best overall servos you can find. Fast and high torque, the SV1271SG+ servo is applicable for numerous tasks.
Features:
- Super strong, precision made titanium gears provide durability that will survive heavy use.
- Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
- Capable of HV operation.
- The servo that racers desire.
- NEW: SSR mode compatible
- NEW: SOFT START
Specifications:
- Torque @7.4v - 30.0kg
- Torque @8.4v - 35.0kg
- Speed @7.4v - 0.08 sec/60 deg
- Speed @8.4v - 0.07 sec/60 deg
- Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
- Weight: 63.0g
Technical Details
- Operating Temperature: (-10° - 50°C)
- Running Current (no load): 120mA @6.0V, 150mA @7.4V
- Stall Current (at locked): 4000mA @6.0 V, 5000mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
