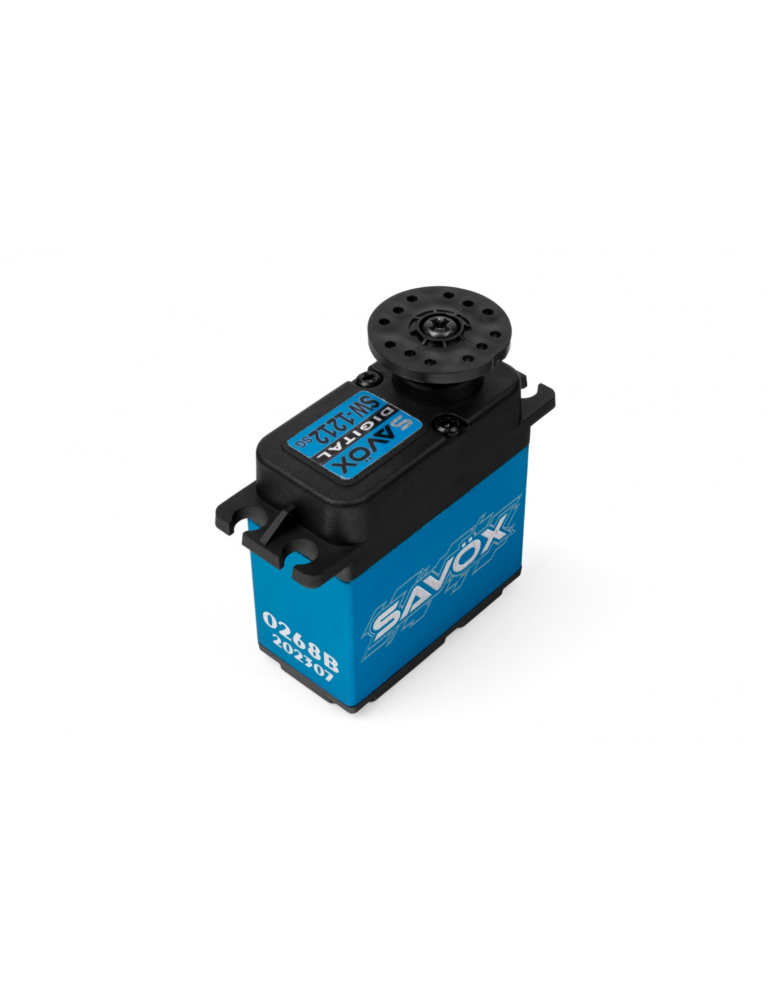

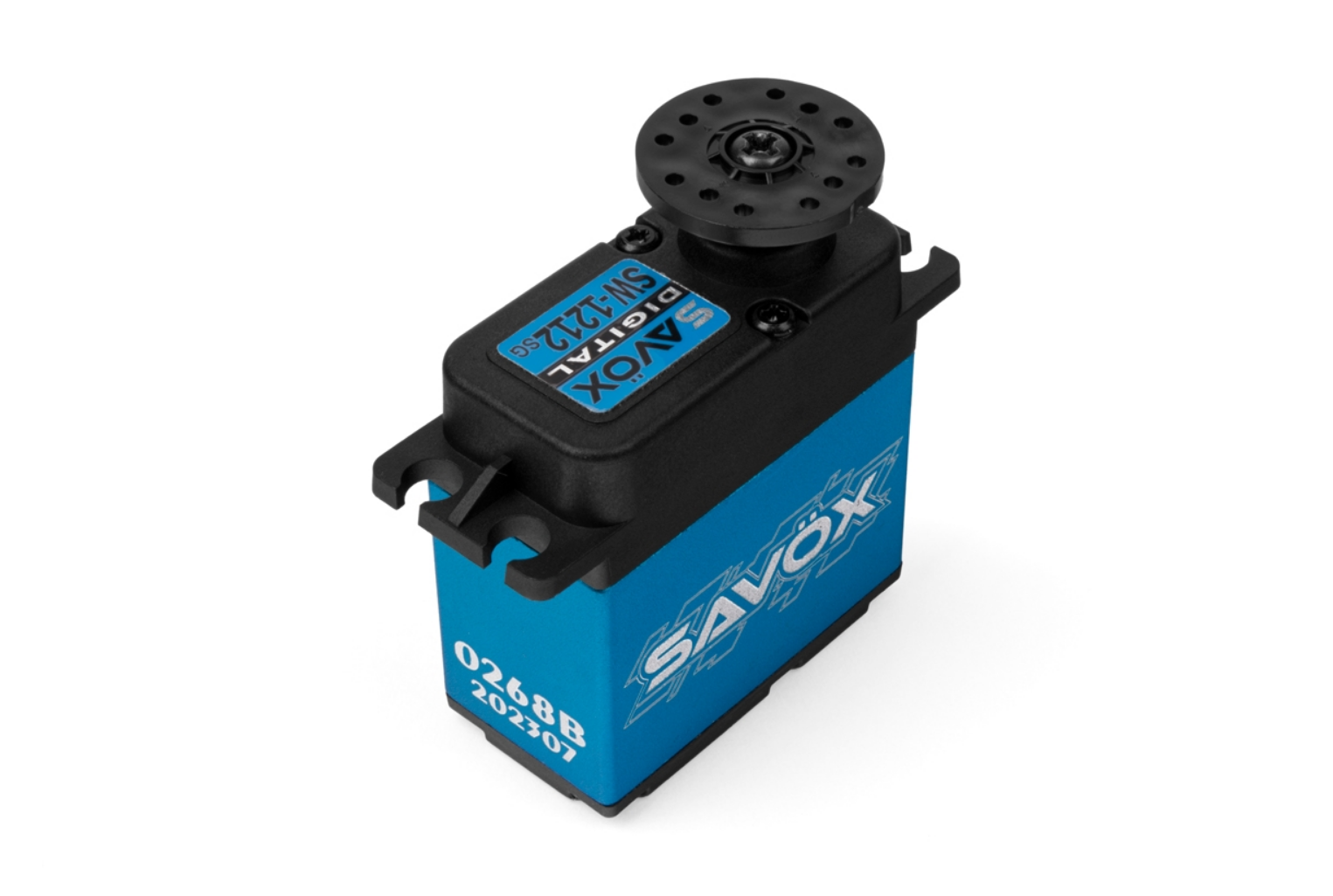

SW-1212SG+ WATERPROOF HiVolt Digital servo (52kg-0,13s/60 )

This waterproof, steel-geared servo is perfect for Monster Truck and most Scaler and Crawler applications where a slightly taller servo can be fitted. Precision steel gears, stump-pulling torque, and waterproof to IP67 standards (operates for up to 30 minutes in water up to 3 feet deep).

Features:

• NEW: SSR mode compatible
• NEW: SOFT START
• Center aluminum with nylon composite top and bottom case
• Operates directly on 7.4v without the need for an eternal BEC
• Precision ball bearings

• Torque @6.0V - 36.0 kg
• Torque @7.4v - 46.0 kg
• Torque @8.4v - 52.0 kg
• Speed @6.0V - 0.17 sec/60 deg
• Speed @7.4v - 0.14 sec/60 deg
• Speed @8.4v - 0.13 sec/60 deg
• Weight: 83g / 3.27oz

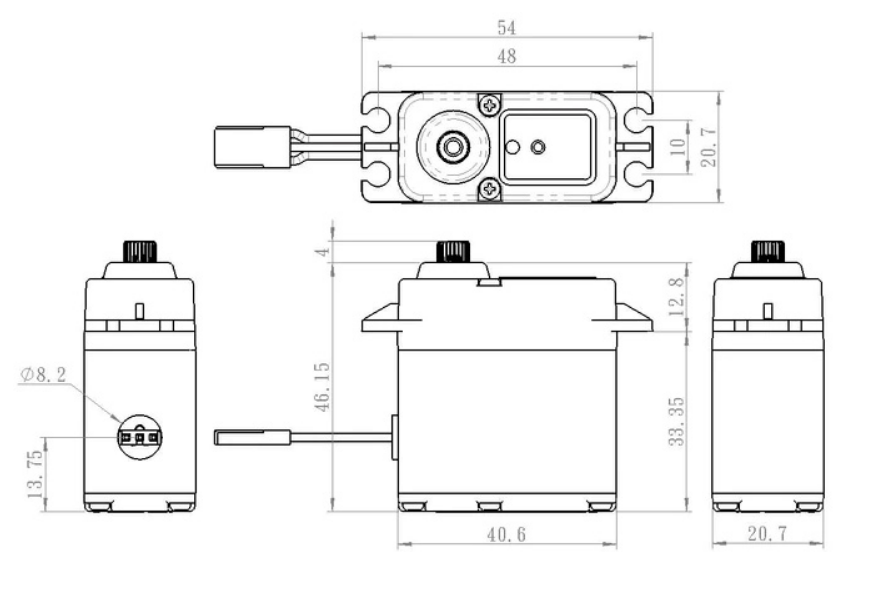

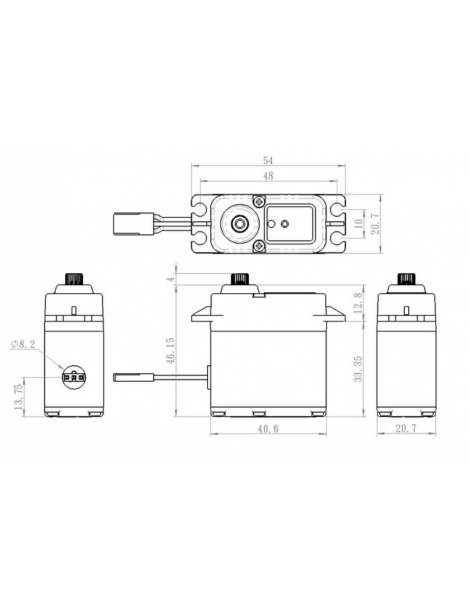

• Dimensions L x W x H mm: 40.6 x 20.7 x 46.1

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 8200mA @6.0V, 10000mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 400 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
