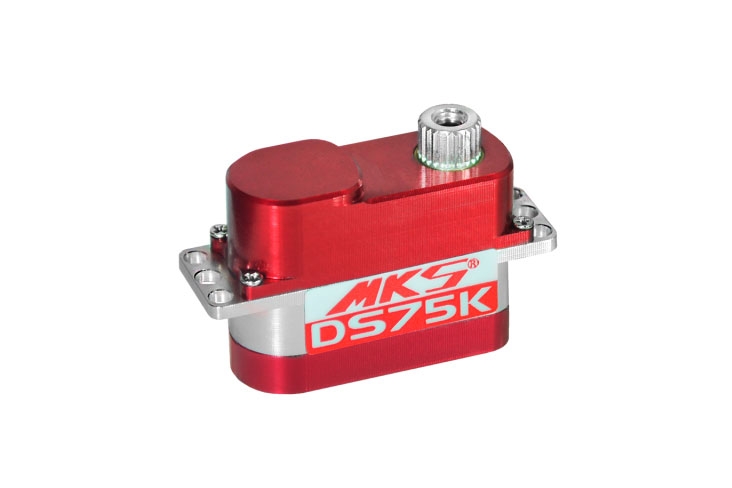

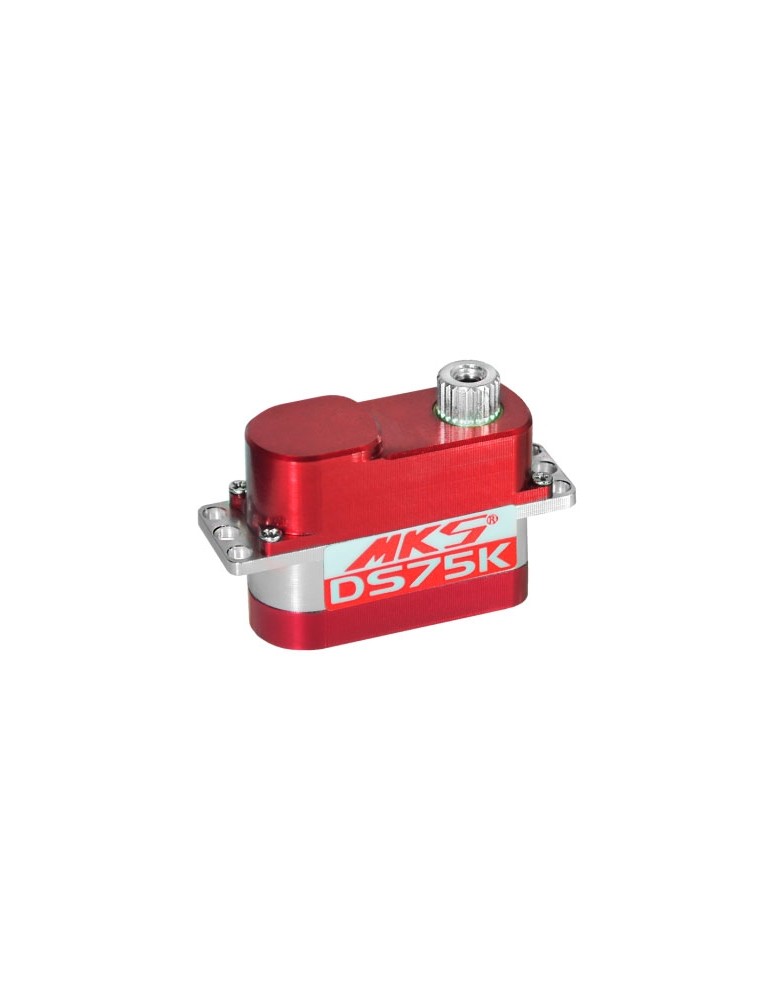

DS75K (0.13s/60 , 2.4kg.cm)
High torque programmable digital micro servo with titanium gears with one ball bearing, one oil-retaining bearing and 2 jewel bearings. The high precision no-backlash preloaded gears and slim 9 mm servo case makes it particularly suitable for controlling ailerons and flaps in F3K hand launch gliders, small gliders/hotliners amd motor models with thin wing profiles like F5D pylon racers. An aluminium mid case for perfect cooling even under high loads.
Input voltage range 3.5-6.0 V (nominal).
Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Servo dimensions | Micro |
Servo type | Digital |
Programmable | Yes |
Torque at 3.7 V [kg∙cm] | 1.6 |
Thrust at 4.8V [kg∙cm] | 2 |
Thrust at 6.0V [kg∙cm] | 2.4 |
Speed at 3.7 V [s/60st.] | 0.22 |
Speed at 4.8V [s/60st.] | 0.16 |
Speed at 6.0V [s/60st.] | 0.13 |
Control pulse width in neutral [µs] | 1520 |
Frame Rate [Hz] | 333 |
Deadband [ms] | 0.001 |
Servo gears | Metal |
Ball bearings | 1× |
High-voltage | No |
Power supply [V] | 3.5 - 6 |

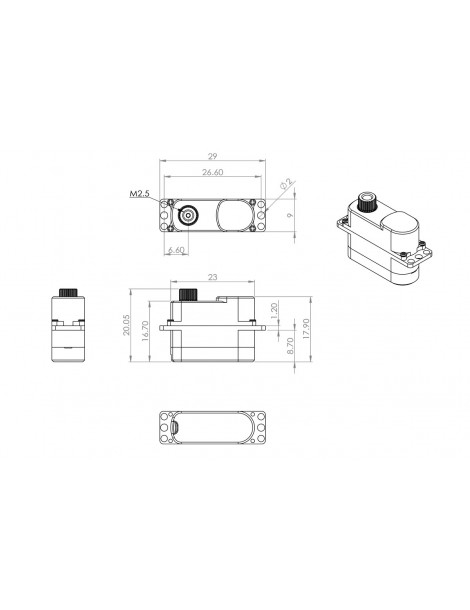

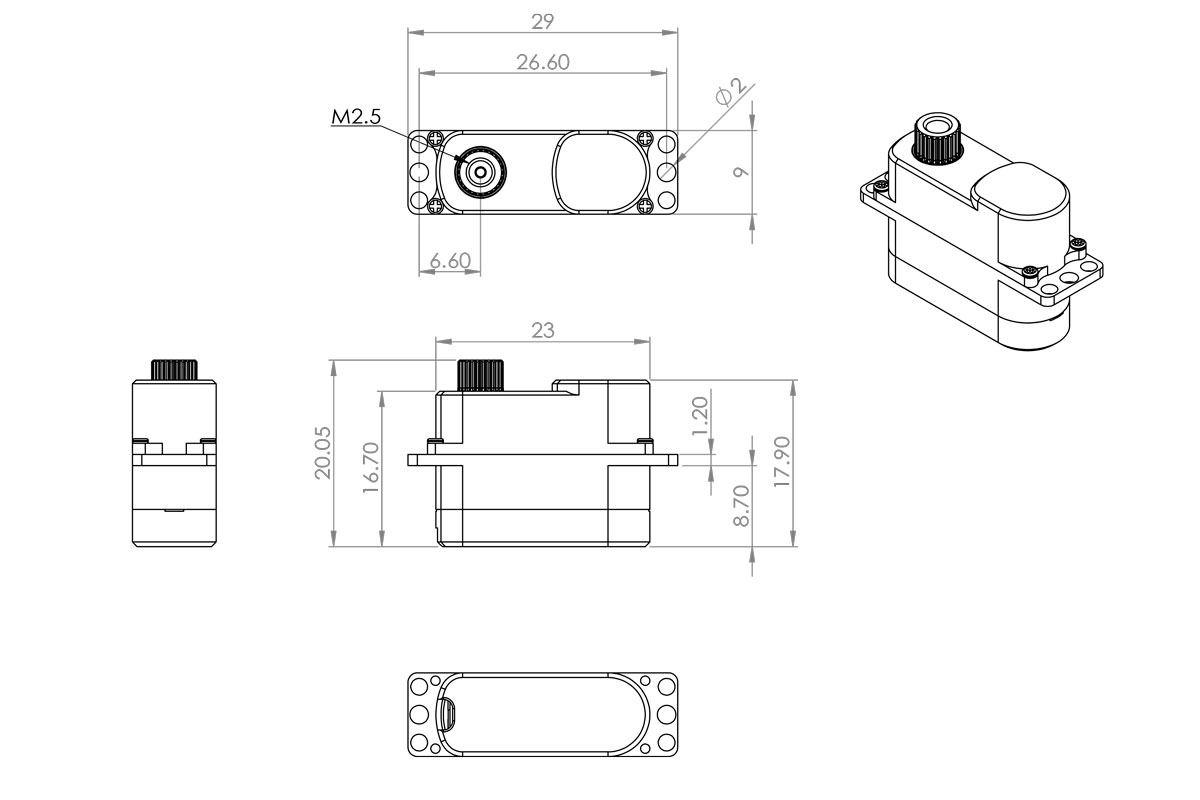

Length [mm] | 23 |
Width [mm] | 9 |
Height [mm] | 16.7 |
Weight [g] | 7.5 |
Intended for | Aeroplanes,Helicopters |
