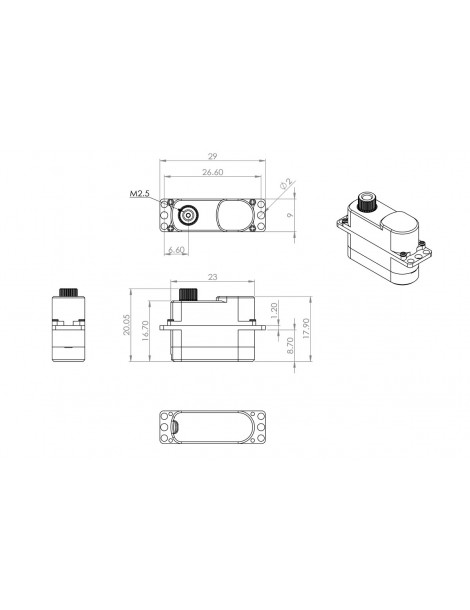

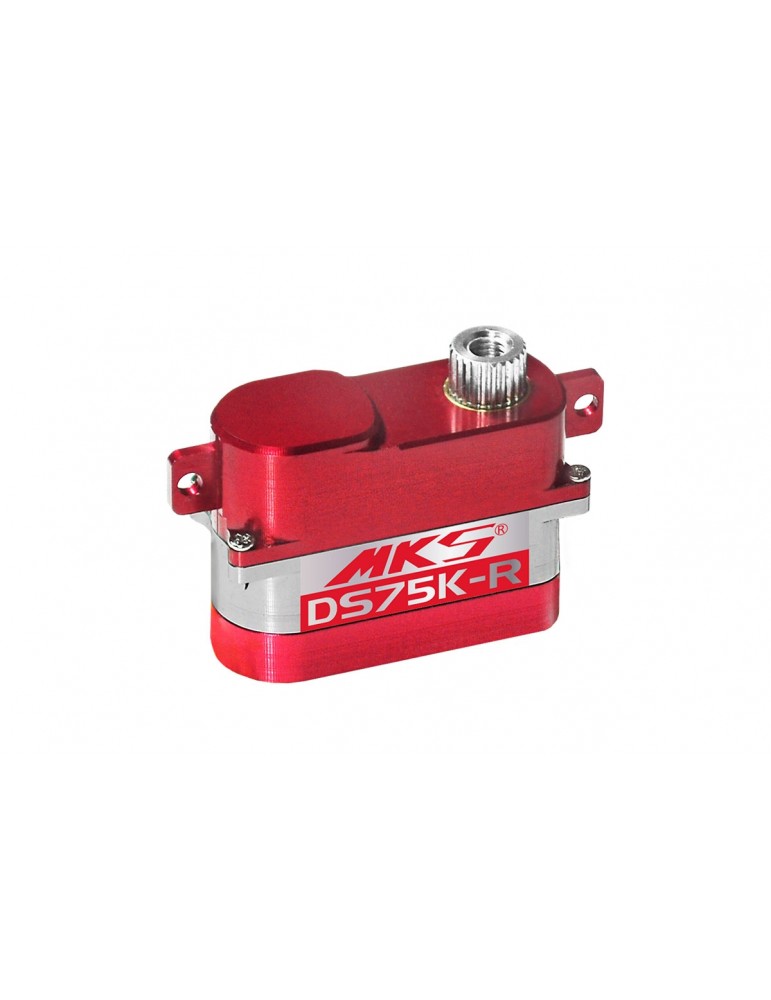

DS75K-R (0.13s/60 , 2.4kg.cm)

High torque programmable digital micro servo with titanium gears with one ball bearing, one oil-retaining bearing and 2 jewel bearings. The high precision no-backlash preloaded gears and slim 9 mm servo case makes it particularly suitable for controlling ailerons and flaps in F3K hand launch gliders, small gliders/hotliners amd motor models with thin wing profiles like F5D pylon racers. An aluminium case with flat mounting lugs for perfect cooling even under high loads.

Input voltage range 3.5-6.0 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
High torque 7.5g digital slim micro servo w. metal gears; input voltage 3.7-6.0V, 1xBB. Ideal for F3K hand launch gliders, small gliders and aerobatic/scale model aeroplanes. Torque 1.6kg.cm, speed 0.22s/60° at 3.7V, torque 2.0kg.cm, speed 0.16s/60° at 4.8V, torque 2.4kg.cm, speed 0.13s/60° at 6.0V. Dimensions 23x9x16.7mm, weight 7.5g. Aluminium case for perfect heat dissipation with flat mounting lugs. Non-programmable.
