100,39 €
Su PVM
Išsiųsime per 4-6 darbo dienas
Atsiskaitymas visa paypal mastercard
message Klauskite apie šią prekę

Klauskite apie šią prekę

DS95i (0.038s/60 , 2.4kg.cm)

DS95i (0.038s/60 , 2.4kg.cm)

* Privalomi laukai

  Atšaukti

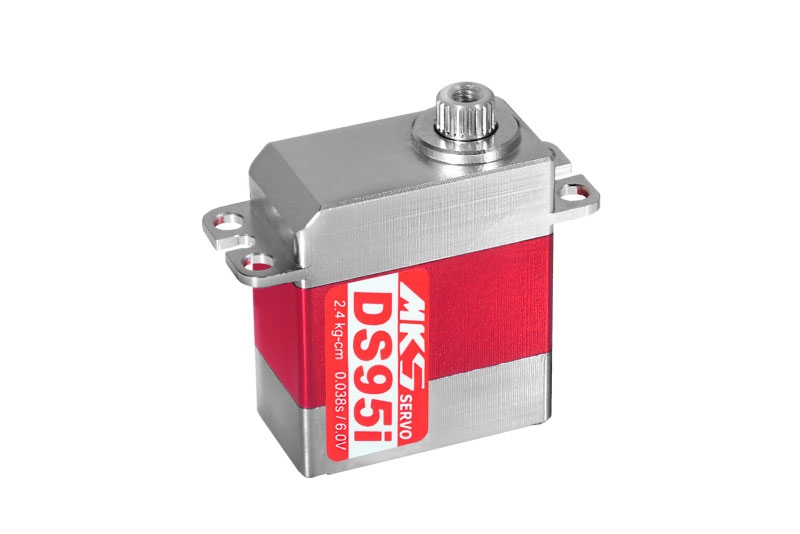

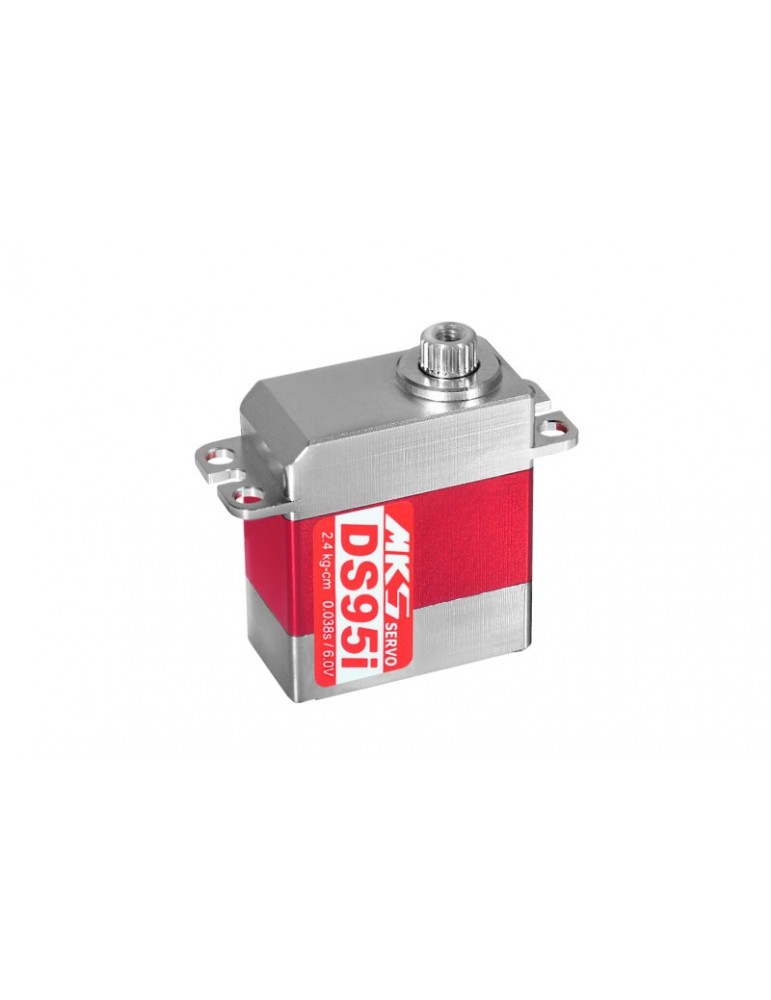

Ultra high speed narrowband (760µs) digital micro servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 380-420 class mini helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.

Input voltage range 4.8-6.0 V (nominal).

Servo dimensionsMicro
Servo typeDigital
ProgrammableNo
Thrust at 4.8V [kg∙cm]1.92
Thrust at 6.0V [kg∙cm]2.4
Speed at 4.8V [s/60st.]0.047
Speed at 6.0V [s/60st.]0.038
Control pulse width in neutral [µs]760
Frame Rate [Hz]560
Deadband [ms]0.0005
Servo gearsMetal
Ball bearings2×
High-voltageNo
Power supply [V]4.8 - 7

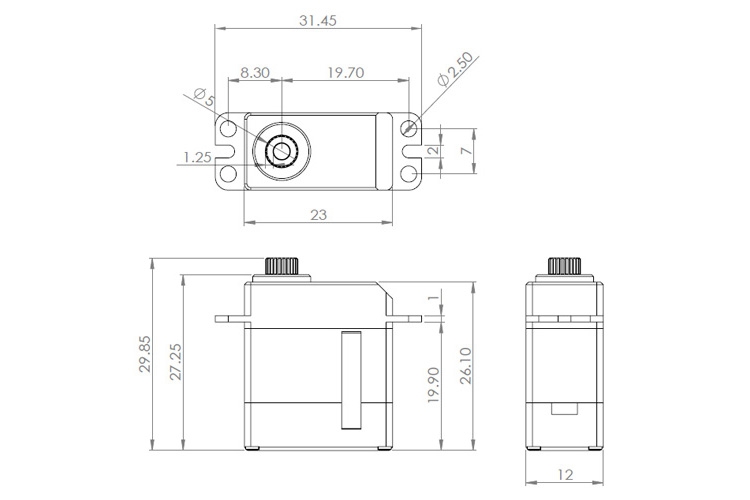

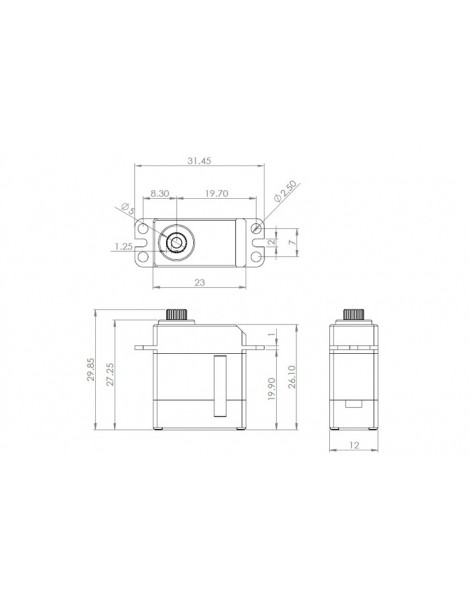

Length [mm]23
Width [mm]12
Height [mm]27.25
Weight [g]21.21
Intended forAeroplanes,Helicopters
MKS
MKS17002
