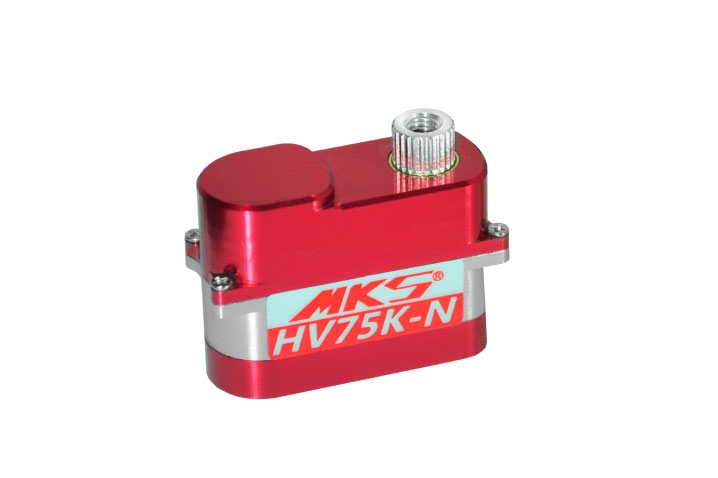

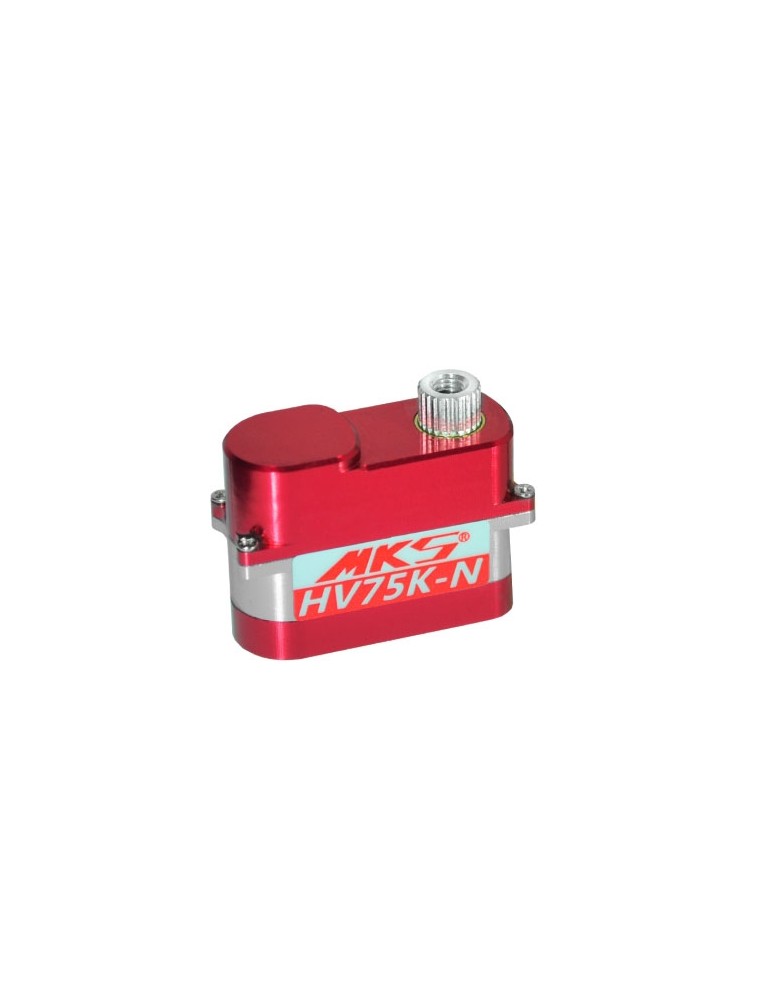

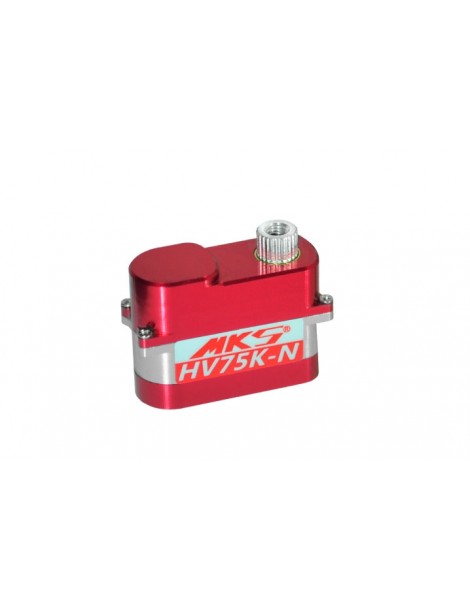

HV75K-N (0.09s/60 , 3.3kg.cm)

Very high torque/high speed programmable digital micro servo with titanium gears with one ball bearing, one oil-retaining bearing and 2 jewel bearings. The high precision no-backlash preloaded gears and flat 9 mm servo case makes it particularly suitable for controlling ailerons and flaps in F3K hand launch gliders, small gliders/hotliners amd motor models with thin wing profiles like F5D pylon racers. An aluminium case without mounting lugs for perfect cooling even under high loads.

Wide input voltage range 3.7-7.4 V (nominal), operational 3.5-8.4 V.

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
