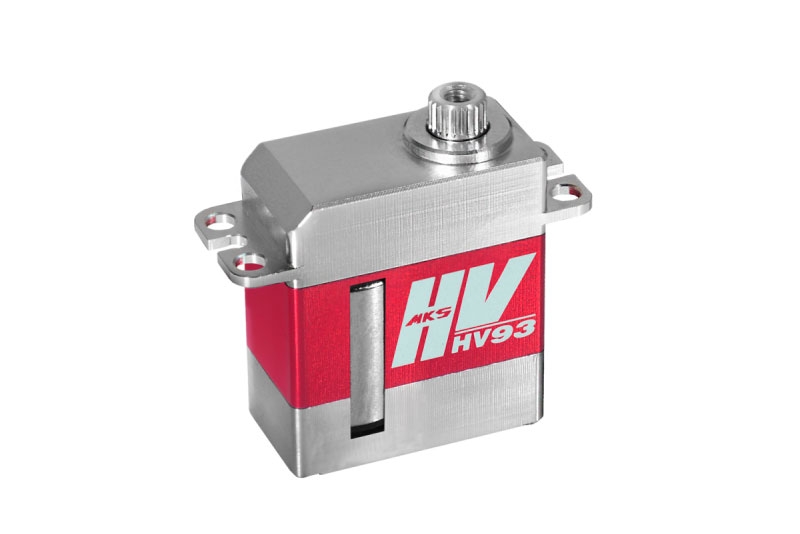

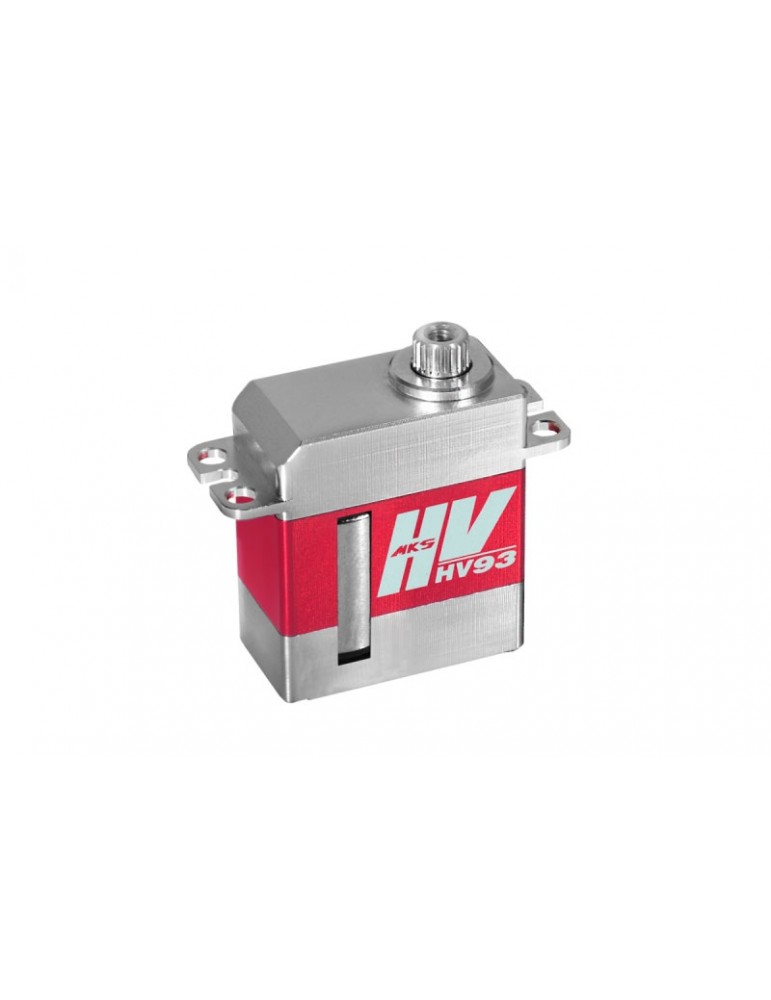

High torque/ultra high speed programmable digital micro servo with metal gears and twin ballraced output shaft. Ideal for cyclic of 380-420 class mini helicopters. An aluminium case for perfect cooling even under high loads.

Input voltage range 6.0-7.4 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface for GO servos and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.

Servo dimensionsMicro
Servo typeDigital
ProgrammableYes
Thrust at 6.0V [kg∙cm]2.2
Thrust at 7.4V [kg∙cm]2.8
Torque at 8.2 V [kg∙cm]3.2
Speed at 6.0V [s/60st.]0.07
Speed at 7.4V [s/60st.]0.06
Speed at 8.2 V [s/60st.]0.05
Control pulse width in neutral [µs]1520
Frame Rate [Hz]333
Deadband [ms]0.001
Servo gearsMetal
Ball bearings2×
High-voltageYes
Power supply [V]6 - 8.4

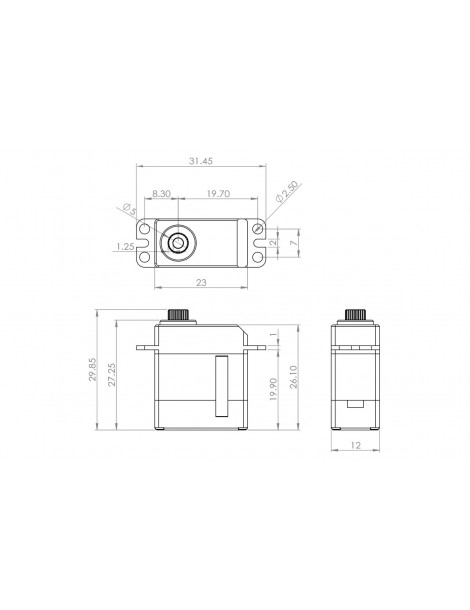

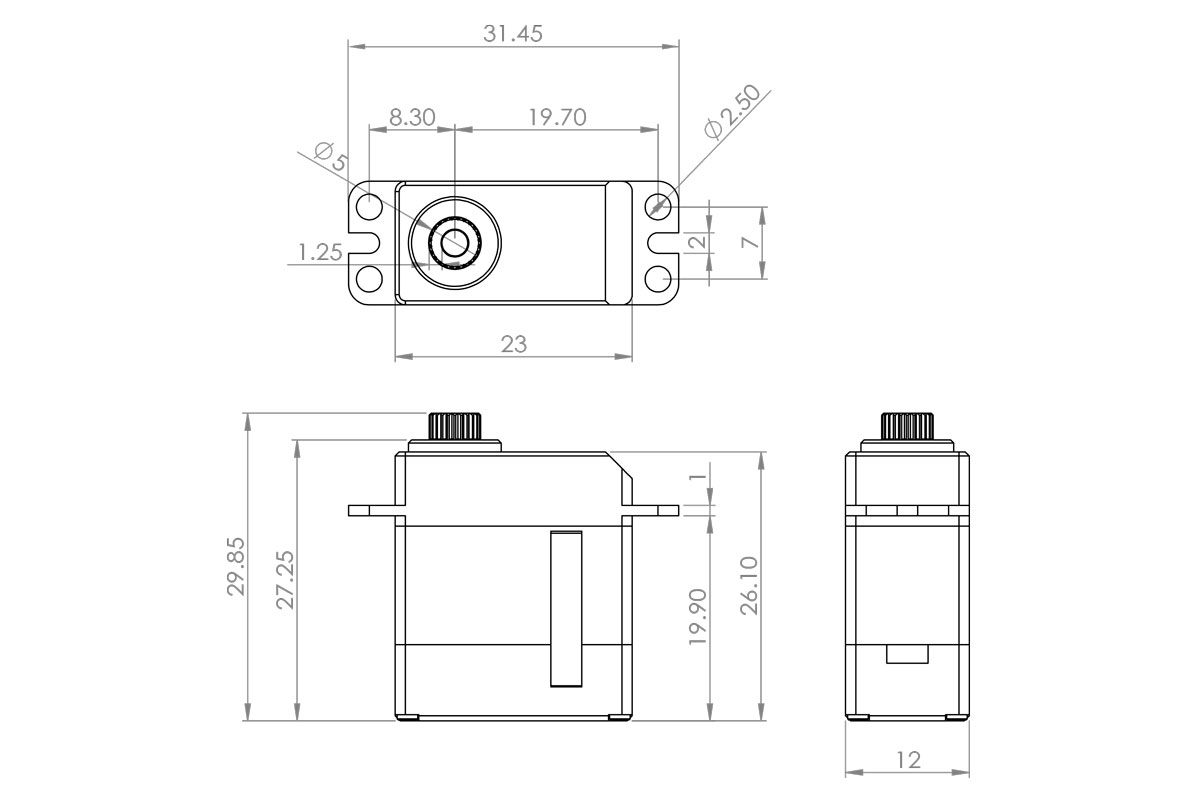

Length [mm]23
Width [mm]12
Height [mm]27.25
Weight [g]19.87
Intended forAeroplanes,Helicopters
