Ultra high speed narrowband (760µs) digital mini servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 500 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.

Input voltage range 6.0-7.4 V (nominal).

Servo dimensionsMini
Servo typeDigital
ProgrammableNo
Thrust at 6.0V [kg∙cm]3.3
Thrust at 7.4V [kg∙cm]4
Torque at 8.2 V [kg∙cm]4.5
Speed at 6.0V [s/60st.]0.055
Speed at 7.4V [s/60st.]0.045
Speed at 8.2 V [s/60st.]0.04
Control pulse width in neutral [µs]760
Frame Rate [Hz]560
Deadband [ms]0.0005
Servo gearsMetal
Ball bearings2×
High-voltageYes
Power supply [V]6 - 8.4

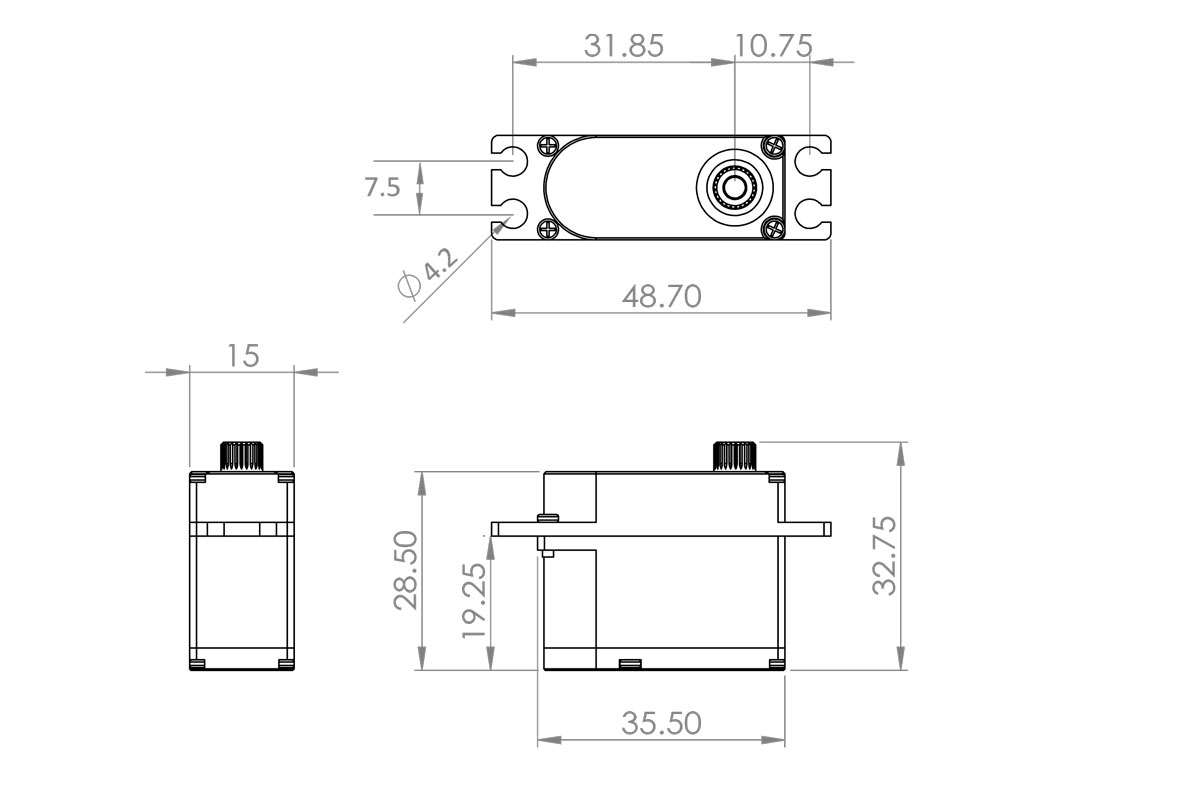

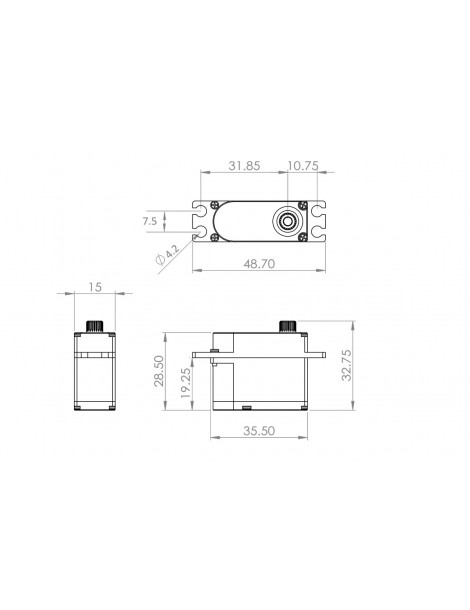

Length [mm]35.5
Width [mm]15
Height [mm]28.55
Weight [g]38.01
Intended forHelicopters
MKS
MKS08005
