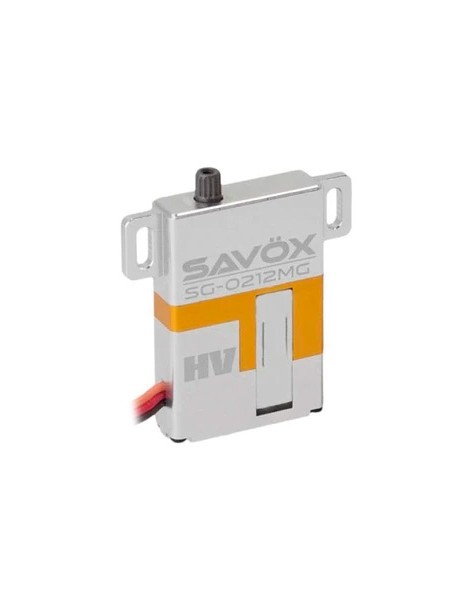

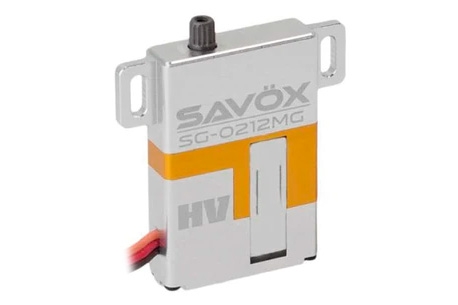

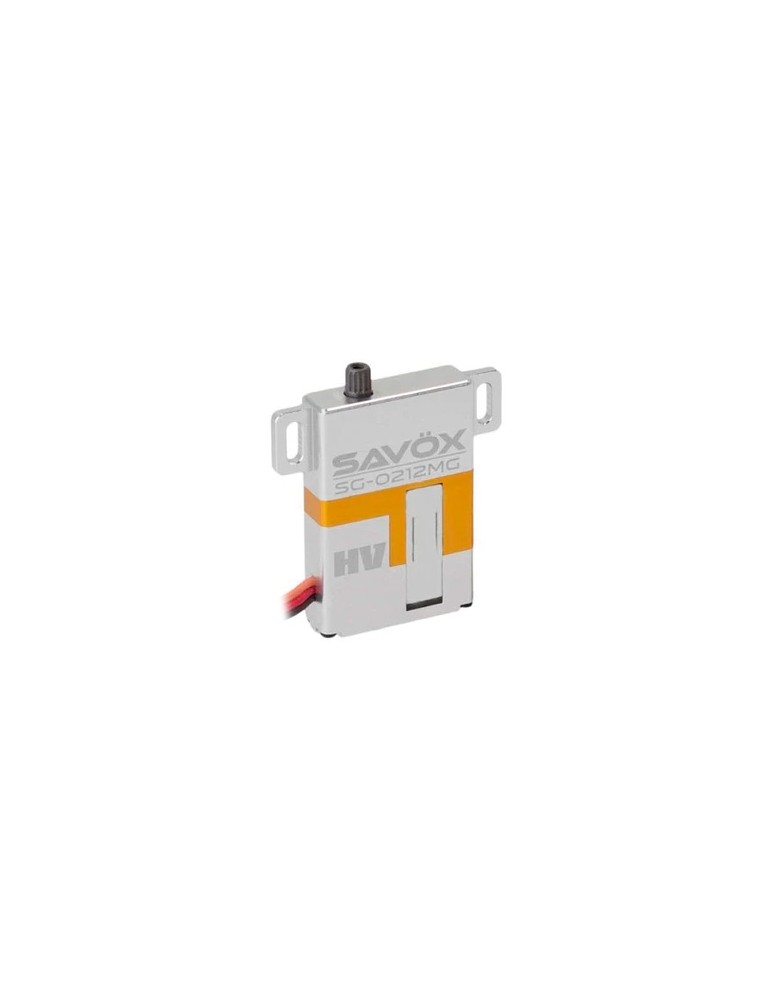

SG-0212MG 8mm HiVolt digital servo (5kg-0,10s/60 )

The SG-0212MG HiVolt is specifically designed for glider and sailplane applications. With its unique case design, it is meant to be mounted in the slim specifications of wings.

Features:

• Metal Gear train for extended life and durability.
• Special design for glider applications.
• Special design for glider applications.
• All aluminum case for secure mounting.

• Torque @6v - 8.0kg/111.1oz-in
• Speed @4.8v - 0.16 sec/60 deg
• Speed @6v - 0.13 sec/60 deg

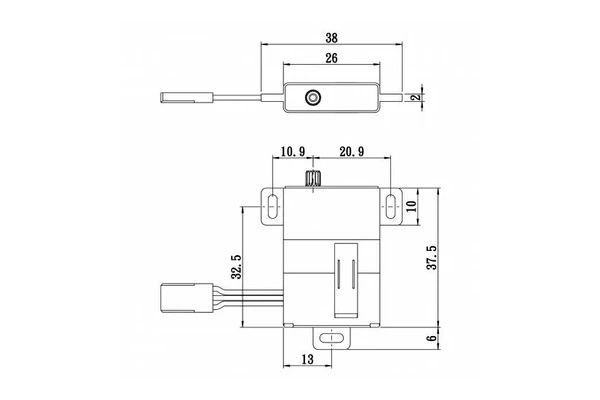

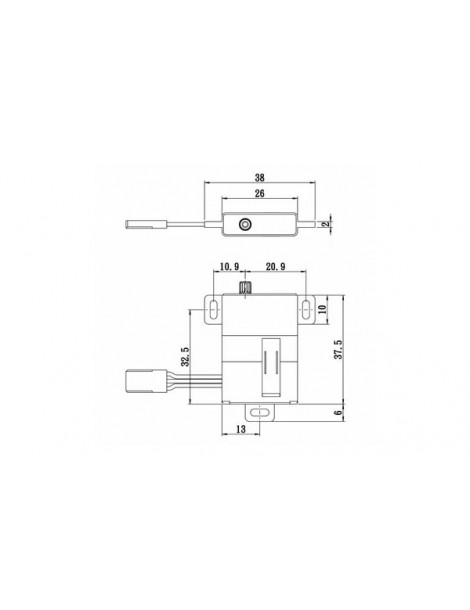

• Dimensions L x W x H (mm): 26.0 x 8.0 x 37.5
• Weight: 21g

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 120mA @6.0V, 180mA @7.4V
• Stall Current (at locked): 3000mA @6.0 V, 3700mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 165° (800 → 2200 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushed
