SH-0256+ Digital servo (4,6 kg-0,16s/60 )

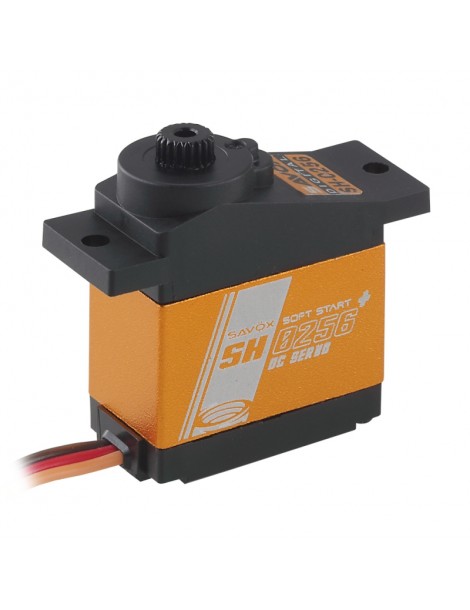

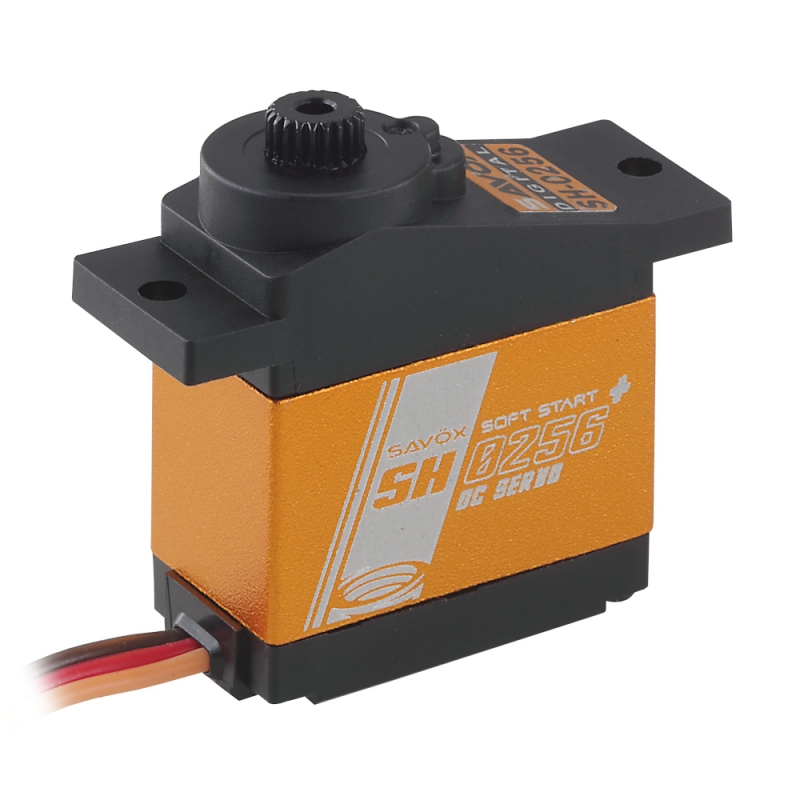

The Savox SH-0256+ micro, super torque, digital servo has a massive amount of torque in a micro-sized case.

Features:

• NEW: SOFT START
• Aluminum middle case allows for cooler operating temperatures.
• Industrial plastic and metal gear train ensures durability and longevity.
• Ideal for small planes, and 450 size helicopters.

Specifications:

• Torque @4.8v - 3.9kg
• Torque @6v - 4.6kg
• Speed @4.8v - 0.21 sec/60 deg
• Speed @6v - 0.16 sec/60 deg
• Dimensions L x W x H (mm):22.8 x 12.0 x 29.4
• Weight: 15.8g

Technical Details

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 180mA @4.8V, 250mA @6.0V
• Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 1BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (750 → 2250 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
