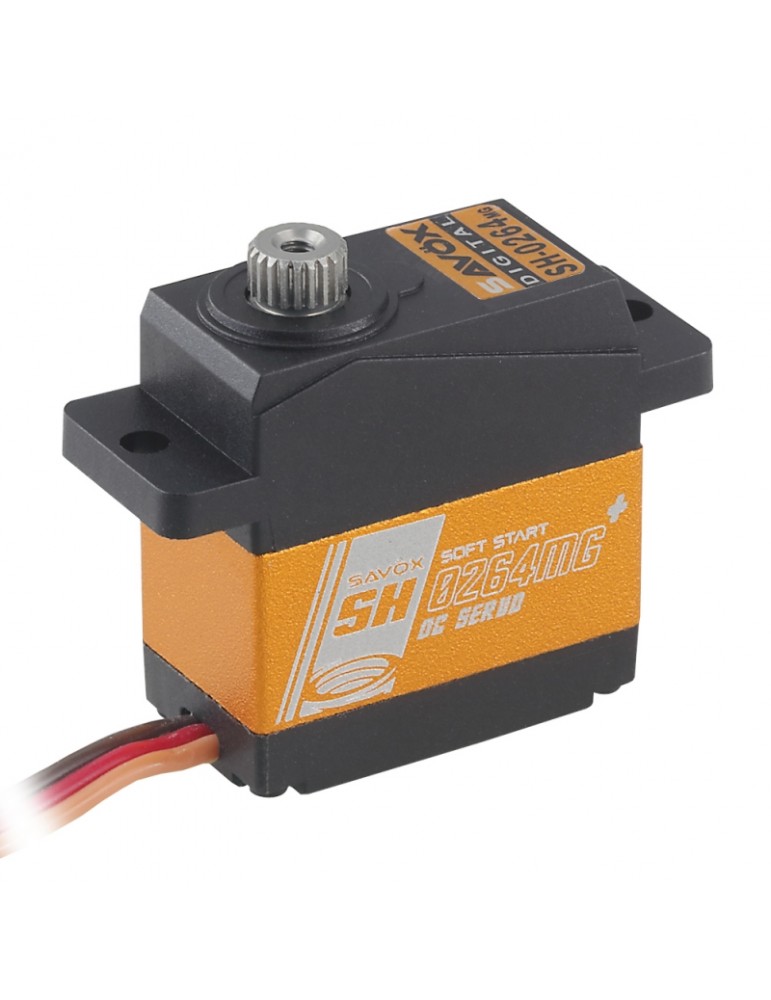

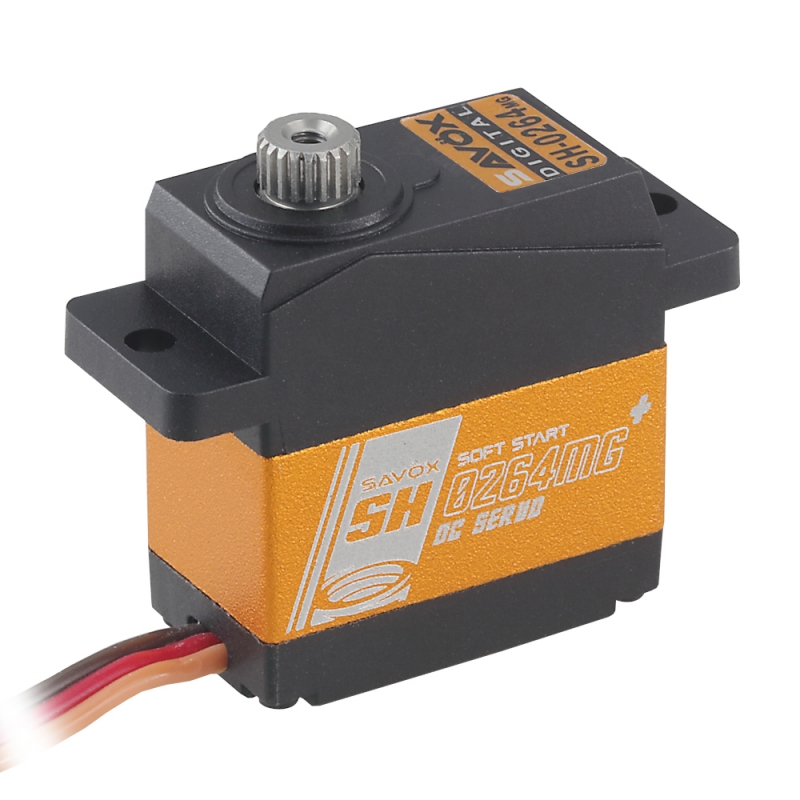

SH-0264MG+ Digital servo (1,2 kg-0,06s/60 )

The Savox SH-0264MG metal-gear, super speed, digital, micro servo is the ultimate fast micro servo.
The Savox SH-0264MG metal-gear, super speed, digital, micro servo is the ultimate fast micro servo.

Features:

• Metal gear train ensures durability and longevity.
• Aluminum middle case allows for cooler operating temperatures.
• Ideal for small planes, and 450 size helicopters.
• Dual ball bearing support.
• NEW: SOFT START

• Torque @4.8v - 0.8kg
• Torque @6v - 1.2kg
• Speed @4.8v - 0.08 sec/60 deg
• Speed @6v - 0.06 sec/60 deg
• Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
• Weight: 15.0g

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 60mA @4.8V, 80mA @6.0V
• Stall Current (at locked): 480mA @4.8V, 600mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2300 µ second
• Maximum Travel: Appx 150° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
