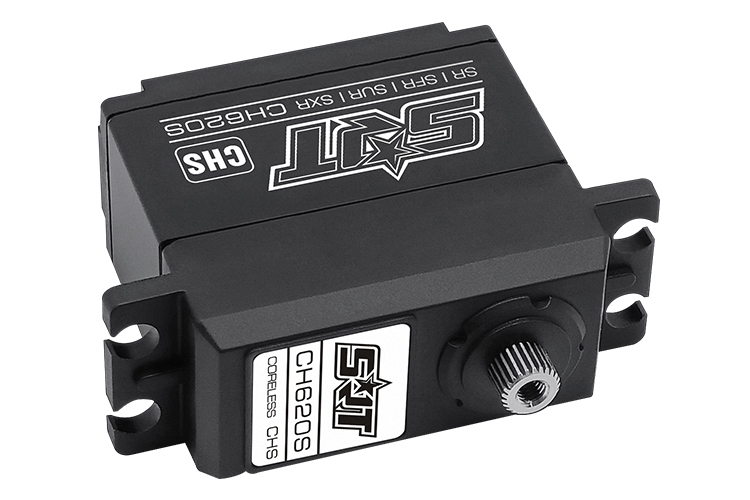

CH620S HiVOLT CORELESS Digital servo (20kg-0.09s/60 )

SRT CH620S

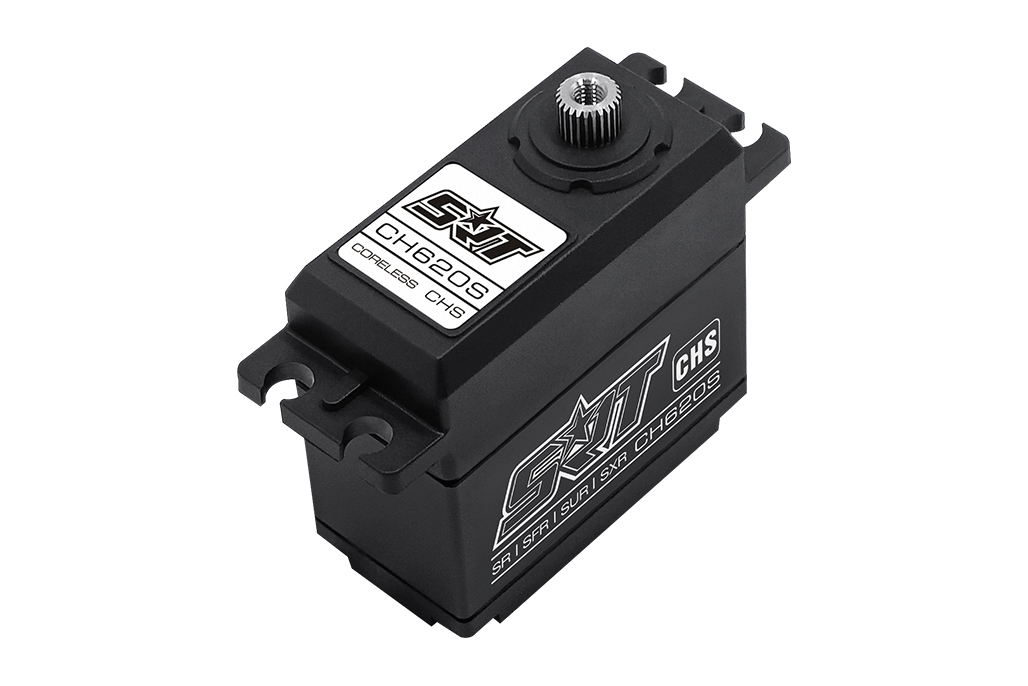

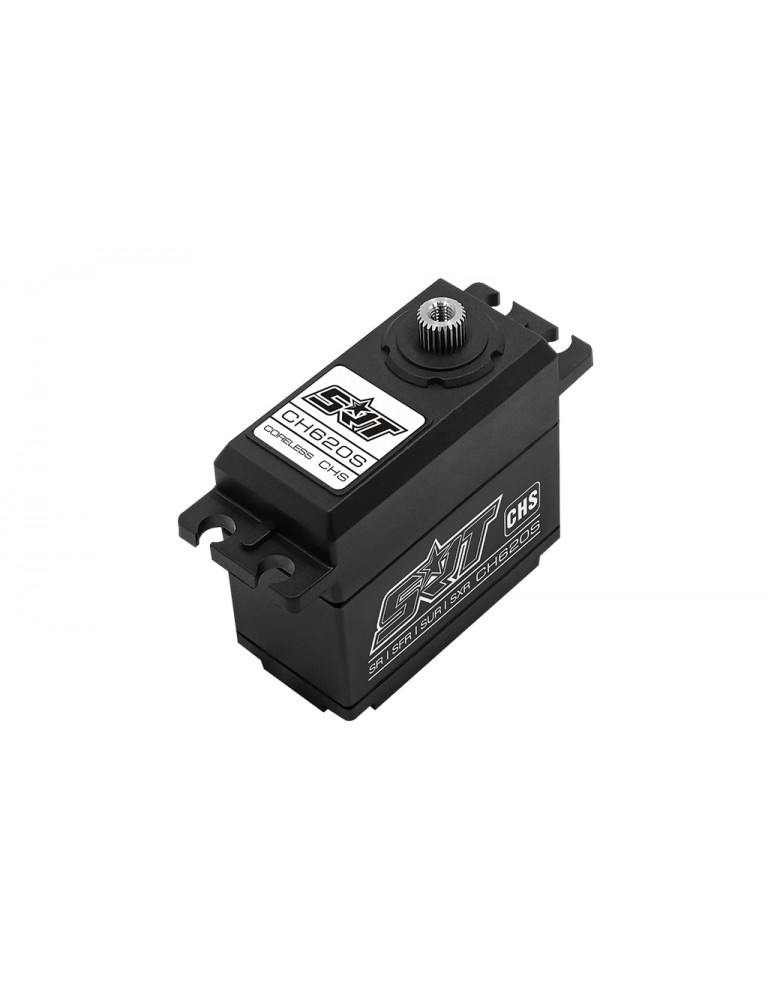

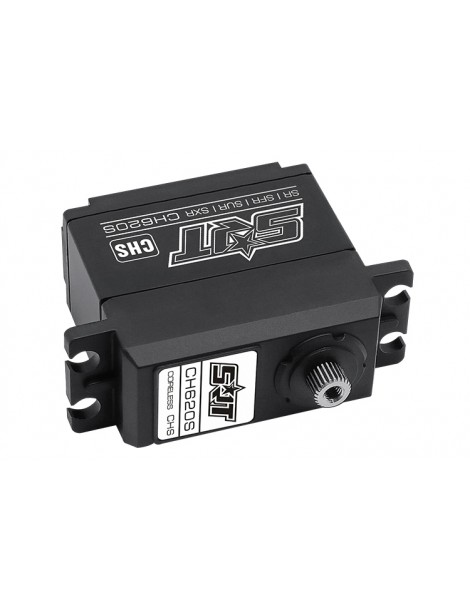

Redesigned HiVOLT CORELESS servo CH620S specially designed for 1/10 and 1/8 On and Off-Road models and RC helicopters with reaction speeds up to 0.09s and 20kg/cm torque. The servo uses a combined metal and composite housing to achieve lower weight, while the CORELESS motor and titanium/aluminum gears provide high performance and durability. The servo features a 300mm black cable with JR connector.

Now compatible with ULTRA fast SSR and SXR/SANWA, SR/FUTABA, SUR and SFR.

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
• incredible efficiency and low power consumption
• 2 μsec Dead Band
• Supporting SR, SFR, SUR, SXR multiple ultra high speed modes

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal

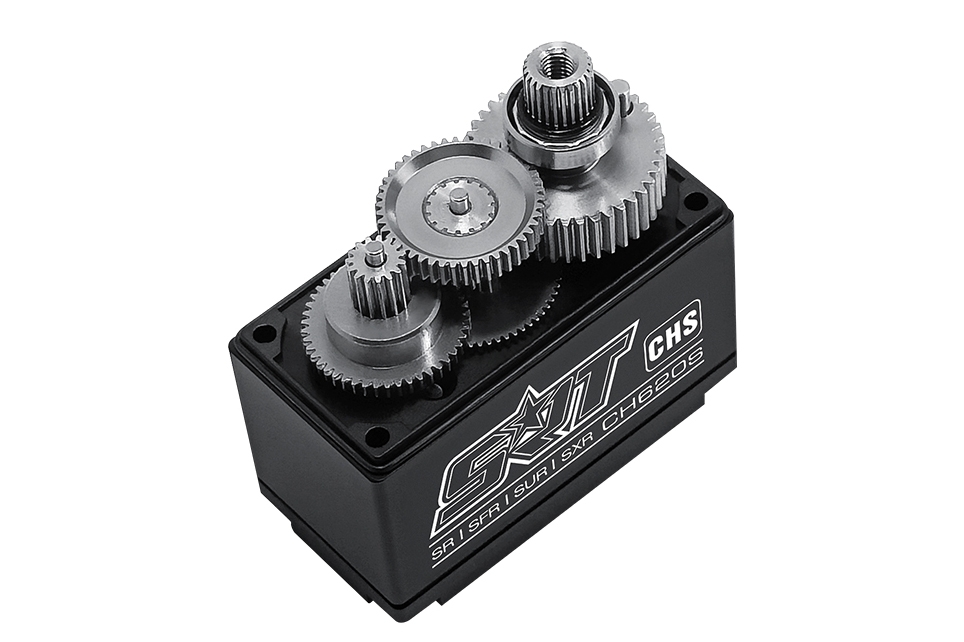

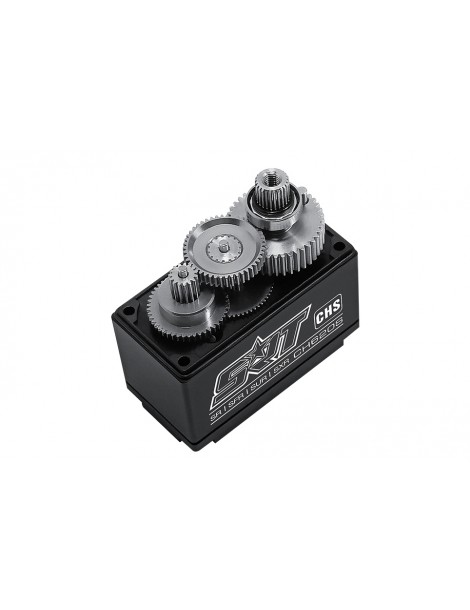

• Gear Material: Titanium & Alu
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: DC 6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.12 sec/60 degrees at no load
• operating speed (7.4v): 0.10 sec/60 degrees at no load
• operating speed (8.4v): 0.09 sec/60 degrees at no load
• stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
• stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
• stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
• potentiometer drive: direct drive

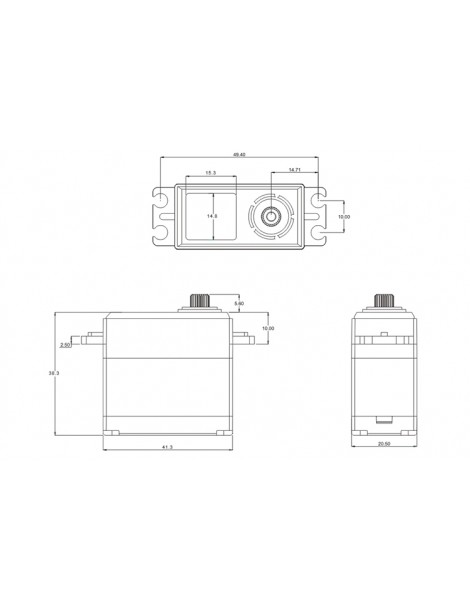

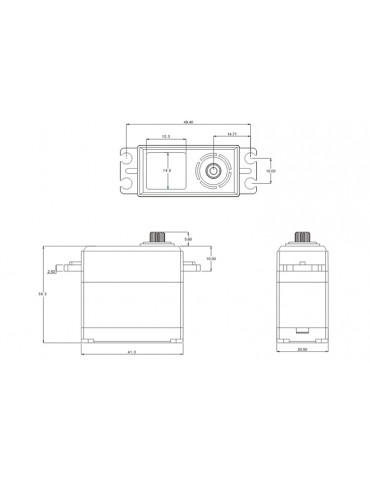

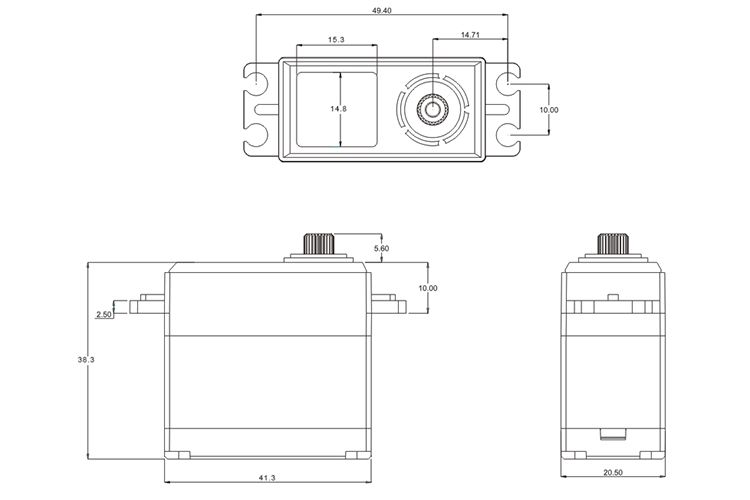

• dimensions: 41.3x20.5x38.3 mm
• weight: 69.0g (2.43 oz)
• Cable: JR 300 mm
